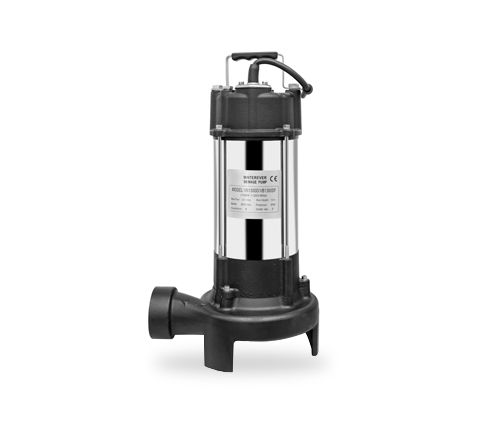

VBD Series 220V 1.1kW to 2.5kW Grinder Sewage Pump

Rated : 220V

Motor power : 1.1kW-2.5kW

Insulation class : B

Protection class : IPX8

Max. immersion depth : 5m

Max. liquid temperature : 40^oC

Grinder

PREV：WQ-2Z Series Efficient Hydraulic Performance Non-clog Impeller Submersible Sewage Pump
NEXT：WJ Series 220V 1.5KW to 2.5KW Non-clog Grinder Sewage Pump for Municipal Projects

Description
Components
Curves
Performance Data
Contact Us

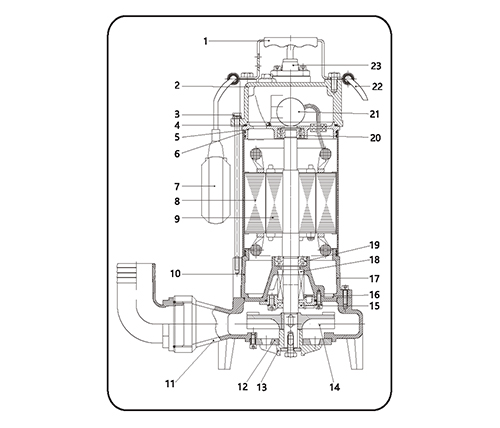

Components :

NO.	NAME	MATERIAL/SPEC.
1	Handle	PP
2	Capacitor Cover	HT200
3	Screw	Stainless steel
4	O ring	NBR
5	Upper Cover	HT200
6	O ring	NBR
7	Float Switch(optional)
8	Shaft Sleeve	AISI 201 (Motor casing)
9	Rotor	45#Carbon steel&2Cr13 Stainless
10	O ring	NBR
11	Pump body	HT200
12	Fixed cutter	45#
13	Rotation cutter	9Cr18
14	Impeller	HT200
15	Oil seal
16	Oil cylinder cover	HT200
17	Oil seal	HT200
18	Mechanical seal	Ceramic/Graphite
19	Bearing
20	Bearing
21	Capacitor
22	Cable
23	Cable Protector	Rubber

Performance Curves :

Performance Data :

About Us

Taizhou Edwin Electric Co., Ltd.

EDWIN PUMP is an OEM/ODM VBD Series 220V 1.1kW to 2.5kW Grinder Sewage Pump Company and Wholesale VBD Series 220V 1.1kW to 2.5kW Grinder Sewage Pump Supplier, which supply a wide range of water pumps and water treatment peripheral products to customers around the world.
With these advanced facilities & instruments, we can supply the most precise finished products to our customers, and make products meet their overall inspection requirements on chemical composition, mechanical properties, non-destructive testing, and high accurate dimensional inspections.
