- Liquid temperature: 70°C
- Ambient temperature: 40°C
- Insulation: Class F
- Protection: IP54
- Duty cycle: S1
- IE5 permanent magnet motor (up to 96% efficiency) automatically adjusts power based on load, saving>30% energy vs. asynchronous motors
- 100% copper wire
- With high-precision sensor
- With LCD display screen
- No water tanks required-direct-use design ensures hygiene and reduces space
- Advanced centrifugal impeller design minimizes noisefor quiet operation
- The circulation of the air conditioning system
- The cooling system
- Water treatment (Purification of water)
- Industrial cleaning system
- The liquid transportation, circulation and ascent
- Hot and cold water
- Food, beverages, agricultural other ingredients system

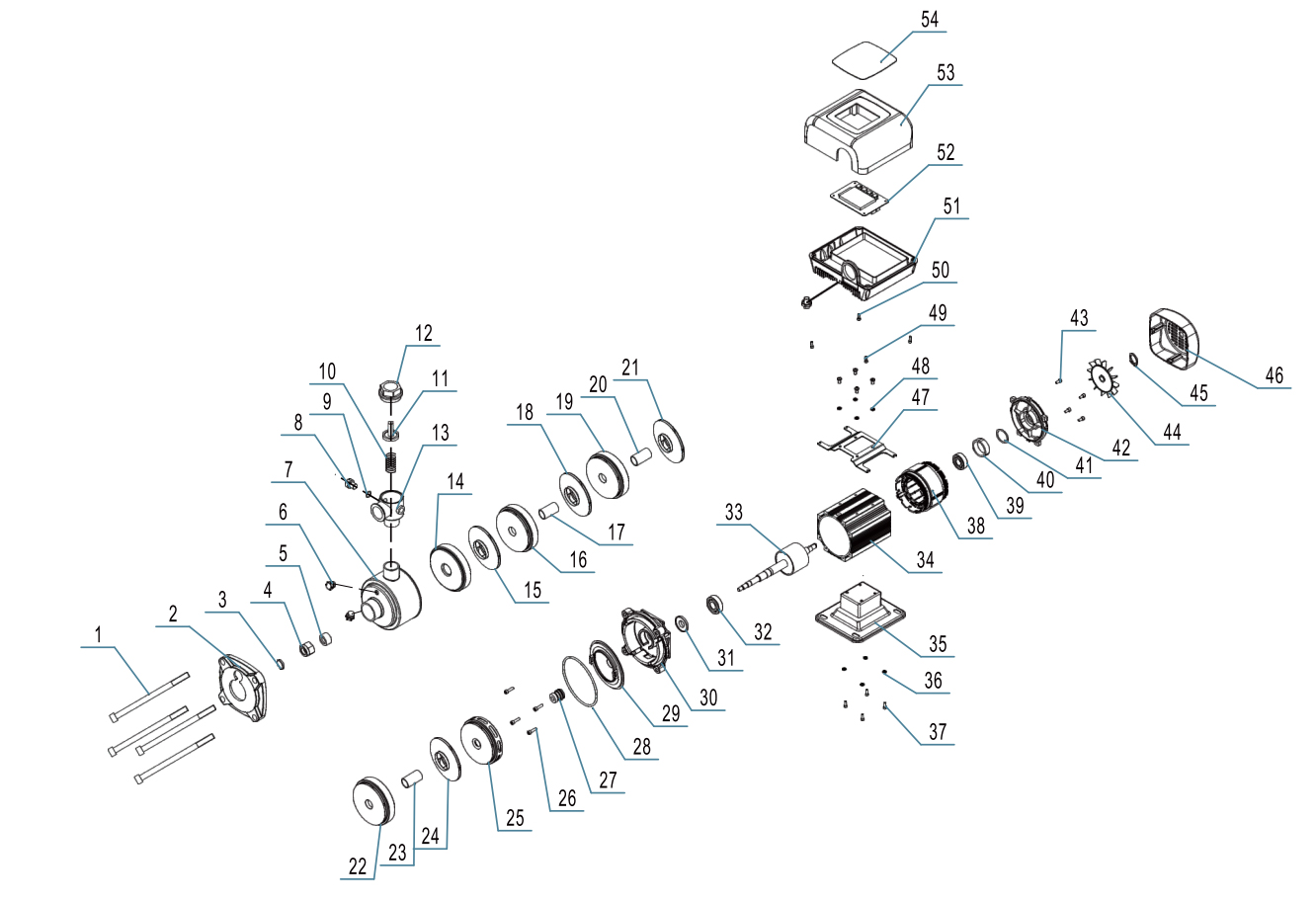

| No. | Name | No. | Name | No. | Name | No. | Name |
| 1 | Socket head cap screw | 15 | Impeller | 29 | Outlet guide vane | 43 | Socket head cap screw |
| 2 | Platen | 16 | Support guide vane | 30 | Seal seat | 44 | Fan blade |
| 3 | Insert | 17 | Spacer | 31 | Waterproof circle | 45 | Circlip |
| 4 | Lock nut | 18 | Impeller | 32 | Bearing | 46 | Wind hood |
| 5 | Spacer | 19 | Support guide vane | 33 | Rotor | 47 | Support plate |
| 6 | Plug | 20 | Spacer | 34 | Barrel | 48 | Spring washer |
| 7 | Pump head | 21 | Impeller | 35 | Bottom baseboard | 49 | Socket head cap screw |
| 8 | Five-way valve plug | 22 | Support guide vane | 36 | Spring washer | 50 | Socket head cap screw |
| 9 | Type o sealing ring | 23 | Spacer | 37 | Socket head cap screw | 51 | Terminal box |
| 10 | Spring | 24 | Impeller | 38 | Stator | 52 | Touching panel |
| 11 | Check valve seat | 25 | Outlet guide vane | 39 | Bearing | 53 | Terminal box cover |
| 12 | Five-way nut | 26 | Socket head cap screw | 40 | Shaft sleeve | 54 | Acrylic board |
| 13 | Five-way valve | 27 | Mechanical seal | 41 | Wave gasket | ||
| 14 | Inlet guide vane | 28 | Type of sealing ring | 42 | Rear end cover |
| Component | Material |
| Pump head | Cast iron |
| Inlet guide vane | Stainless steel |
| Impeller | Stainless steel |
| Shaft seal | Stainless steel |
| Shaft | Silicon carbide/graphite |
| Barrel | Aluminum |
| Rear end cover | Aluminum |
| Fan blade | Engineering plastic |

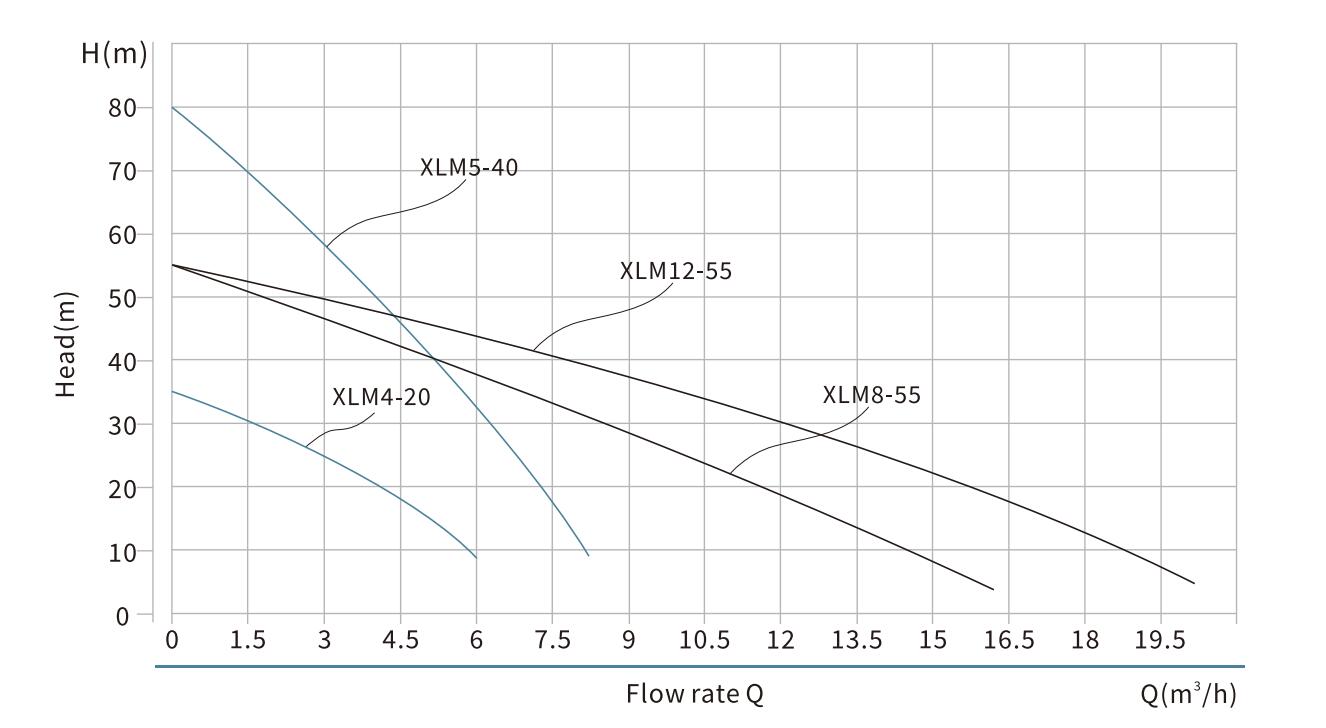

| Model | Power（W） | Frequency（Hz） | Max.flow（m³/h） | Max.head（m） | Max.rpm（r/min） | Inlet&Outlet（inch） | Meas.（mm） |
| XLM4-20 | 100-750 | 50/60 | 6 | 35 | 4200 | 1" x 1" | 303*198.5*277 |
| XLM5-40 | 100-1100 | 50/60 | 8 | 80 | 4200 | 1¼" x 1" | 303*198.5*277 |
| XLM8-55 | 100-1500 | 50/60 | 16 | 55 | 4000 | 1½" x 1½" | 117*223*267 |
| XLM12-55 | 400-2200 | 50/60 | 20 | 55 | 4200 | 2" x 2" | 117*223*267 |
