- Clean water, the volume of solid particles lower than 0.1%, the size less than 0.2 mm
- Liquid temperature:0°C<watertemperature≤ 100°C
- Ambient temperature range:0°C-40°C
- PHlevel:4～10
- Relative humidity: Max 85.6% (RH)
- IE5 permanentmagnet motor - 100%copper wire
- Energy-saving, wide voltage dual frequency use, simple operation, and multiple protections
- One-click pressure regulation, simple and beautiful, with IP54 protection, supporting outdoor use - Suitable for water tower pressure boost, hot water pressure boost, whole house pressure boost system, integration. Non-return water structure, designed to eliminate water hammer, equipped with high-quality sensors
- Self-start function: when the pump is not used for a long time, it will automatically stop after a few seconds of self-start every 12 hours, effectively preventing the pump from being stuck due to long-term non-use
- Products applicable to low viscosity, neutral, non-explosive, containing no solid particles or fibers liquid can't be transported material has chemical corrosion to pump material. (Oil or oil-based liquid can be pumped with a special type of pump)
- The circulation of air conditioning system
- The cooling system
- Water treatment (Purification of water)
- Industrial cleaning system
- The liquid transportation, circulation and ascent
- Hot and cold water
- Food, beverages, agricultural and other ingredients system

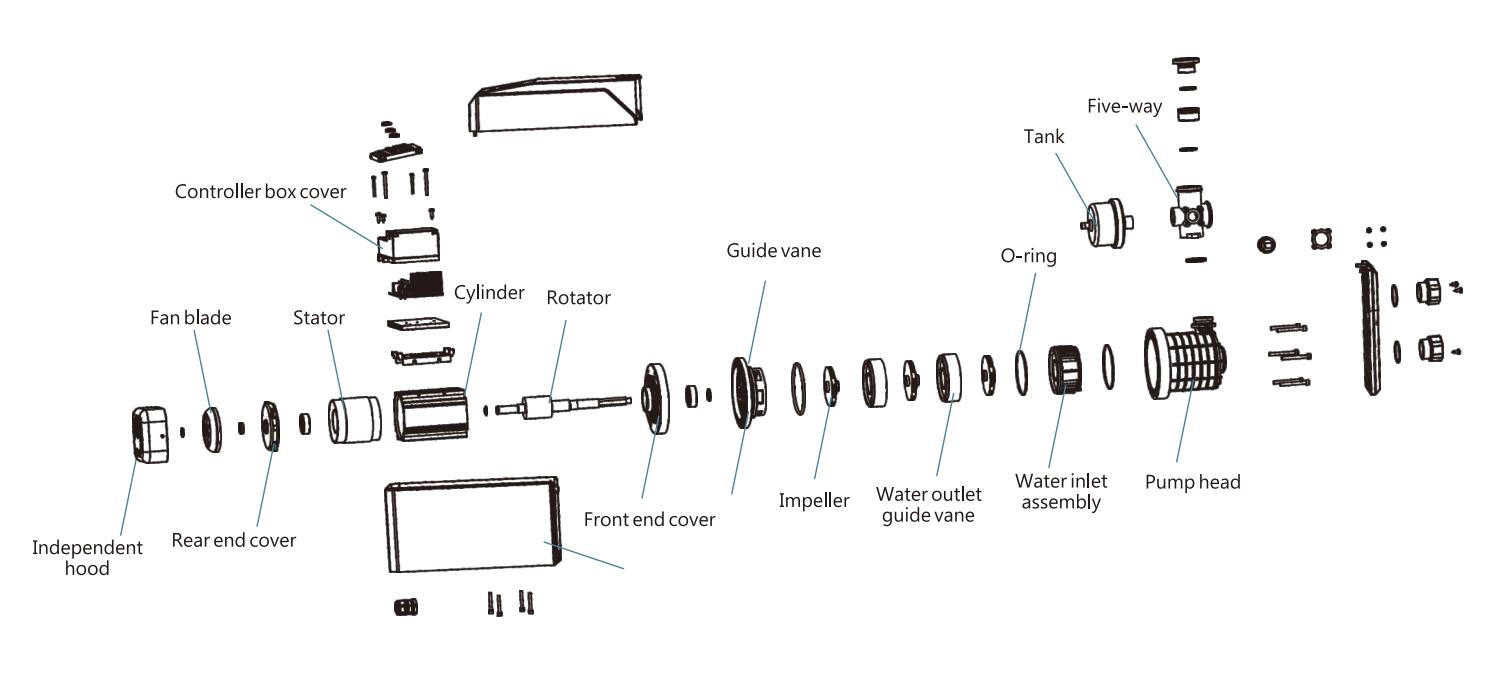

| Component | Material |
| Pump body | Engineering plastic |
| Base&upper cover | Engineering plastic |
| Impeller | Engineering plastic |
| Shaft seal | Stainless steel |
| Shaft | Silicon carbide/graphite |

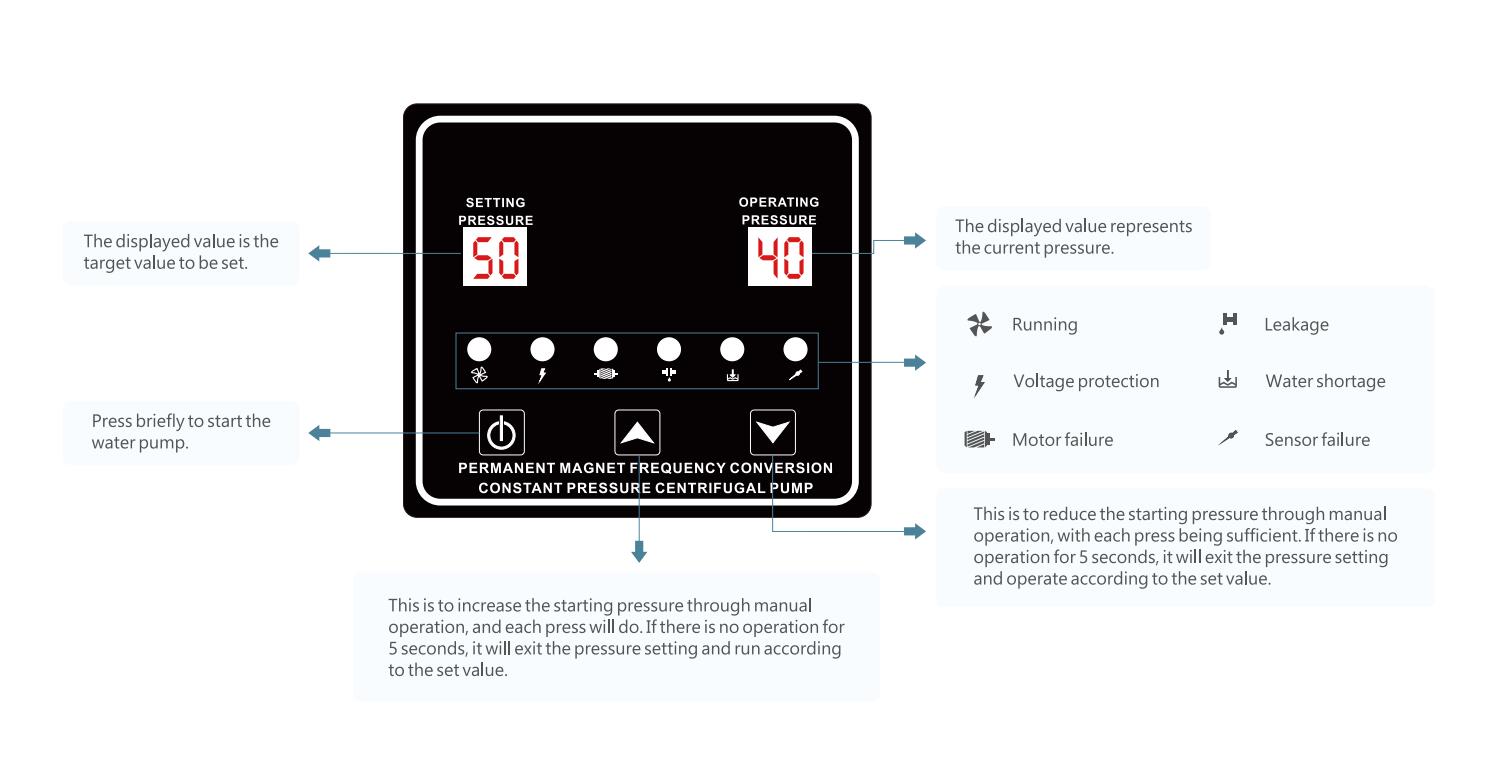

Operation Interface:

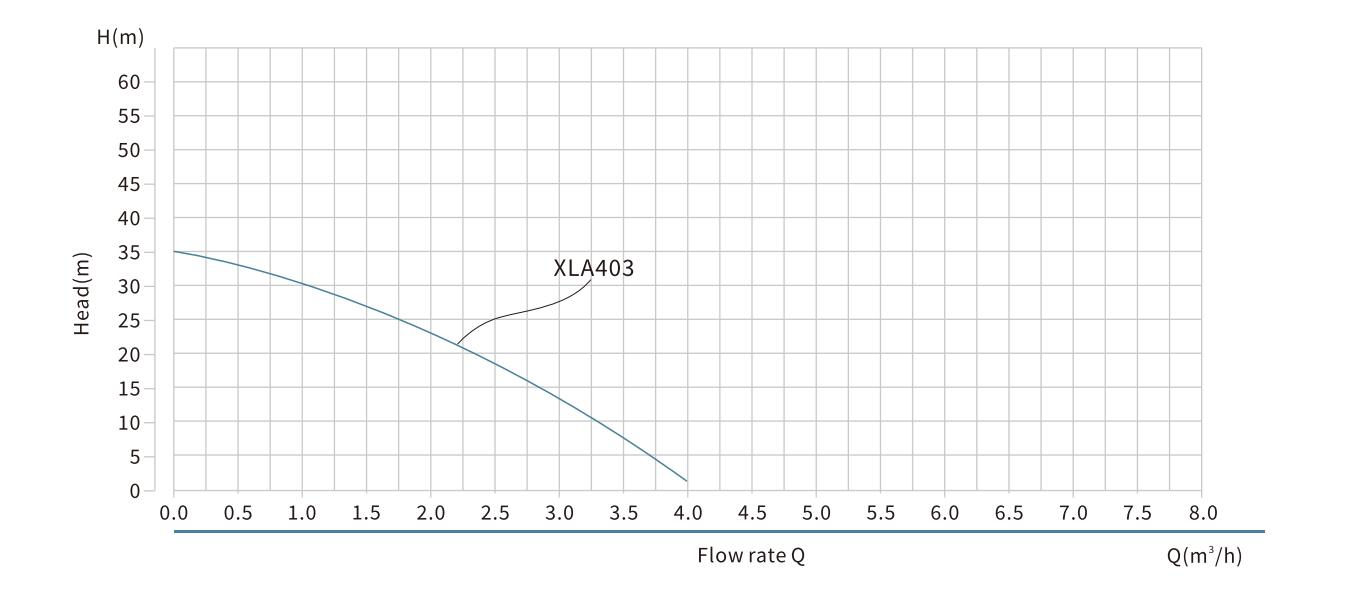

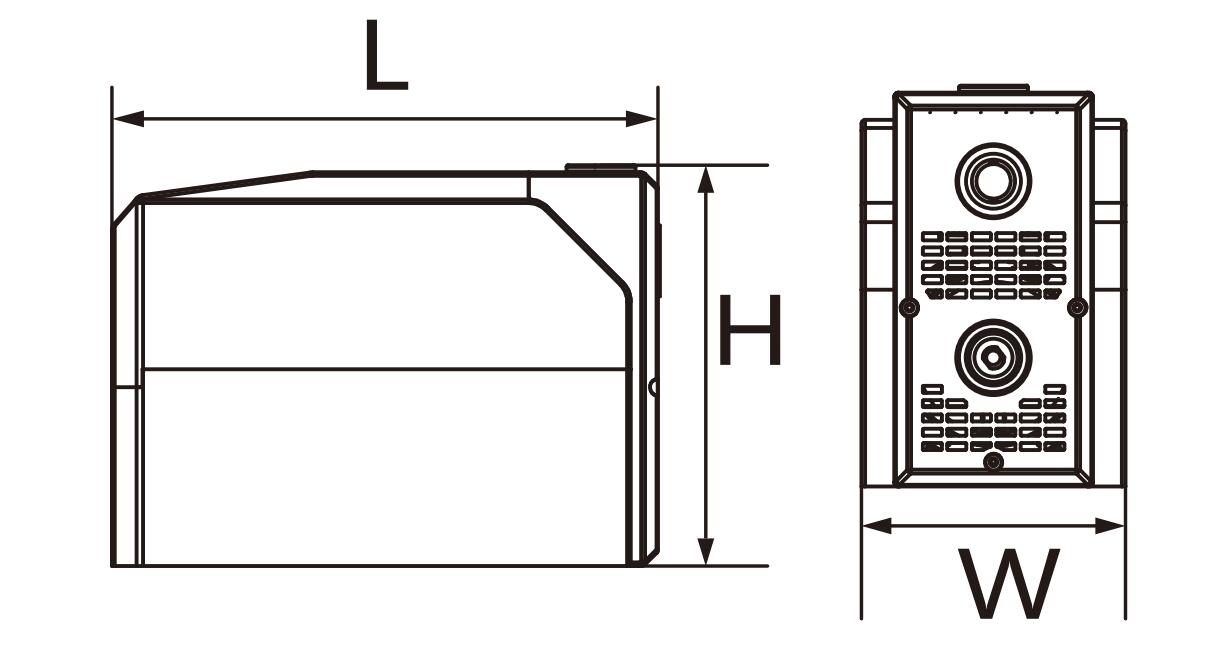

| Model | Frequency（Hz） | Power（W） | Max.flow（L/min） | Max.head（m） | Max.suction（m） | Inlet&Outlet（inch） | Max.rpm（r/min） | N.W.（kg） | G.W.（kg） | Size(L×W×H)（mm） |
| XLA403 | 50/60 | 100-400 | 66 | 25 | 5 | 1" x 1" | 4800 | 4.5 | 5.5 | 301*146*228 |
