- Liquid temperature: 70°C
- Ambient temperature: 40°C
- Insulation: Class F
- Max.Suction: 8.5m
- Protection: IP 54
- Input voltage: Single phase 180-260V,50/60Hz
- IE5 permanent magnet motor
- 100% copper wire
- Energy saving, wide voltage dual frequency use, simple operation, and multiple protections
- One click pressure regulation, simple and beautiful, with IP54 protection, supporting outdoor use
- Suitable for water tower pressure boost, hot water pressure boost, whole house pressure boost system, and integration. Non-return water structure, designed to eliminate waterhammer, equipped with high-quality sensors
- All fluid components are made of stainless steel, Safe, Hygienic, and Durable.
- Well water lifting and water tower water filling
- Living water supply and garden irrigation
- Pipeline pressure boosting and supporting equipment (solar energy water supply system ,water heater,etc.)
- Transfer clean water or non-corrosive liquid without solid particles and fibers

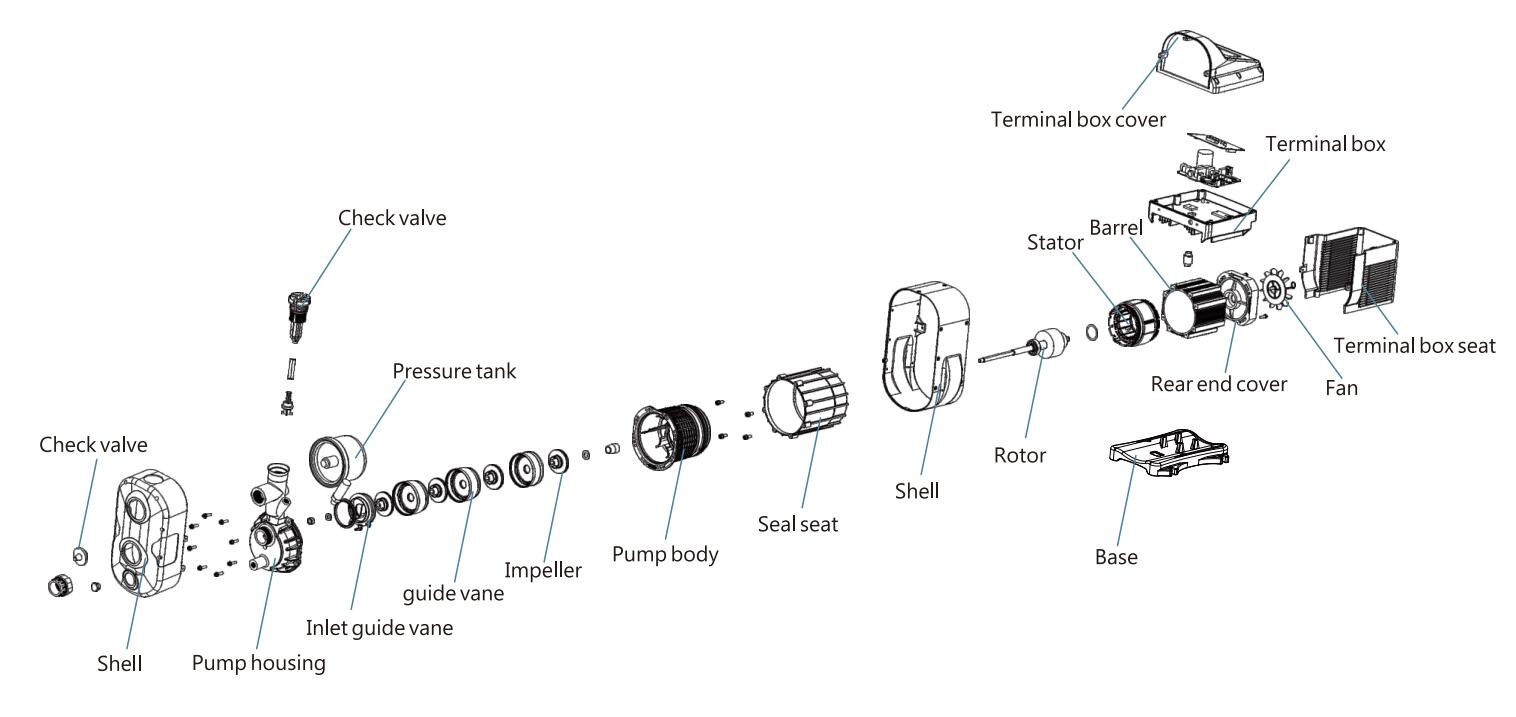

| Component | Material |
| Pump body | Engineering plastic |
| Base&upper cover | Engineering plastic |
| Impeller | Engineering plastic |
| Shaft seal | Stainless steel |
| Shaft | Silicon carbide/graphite |

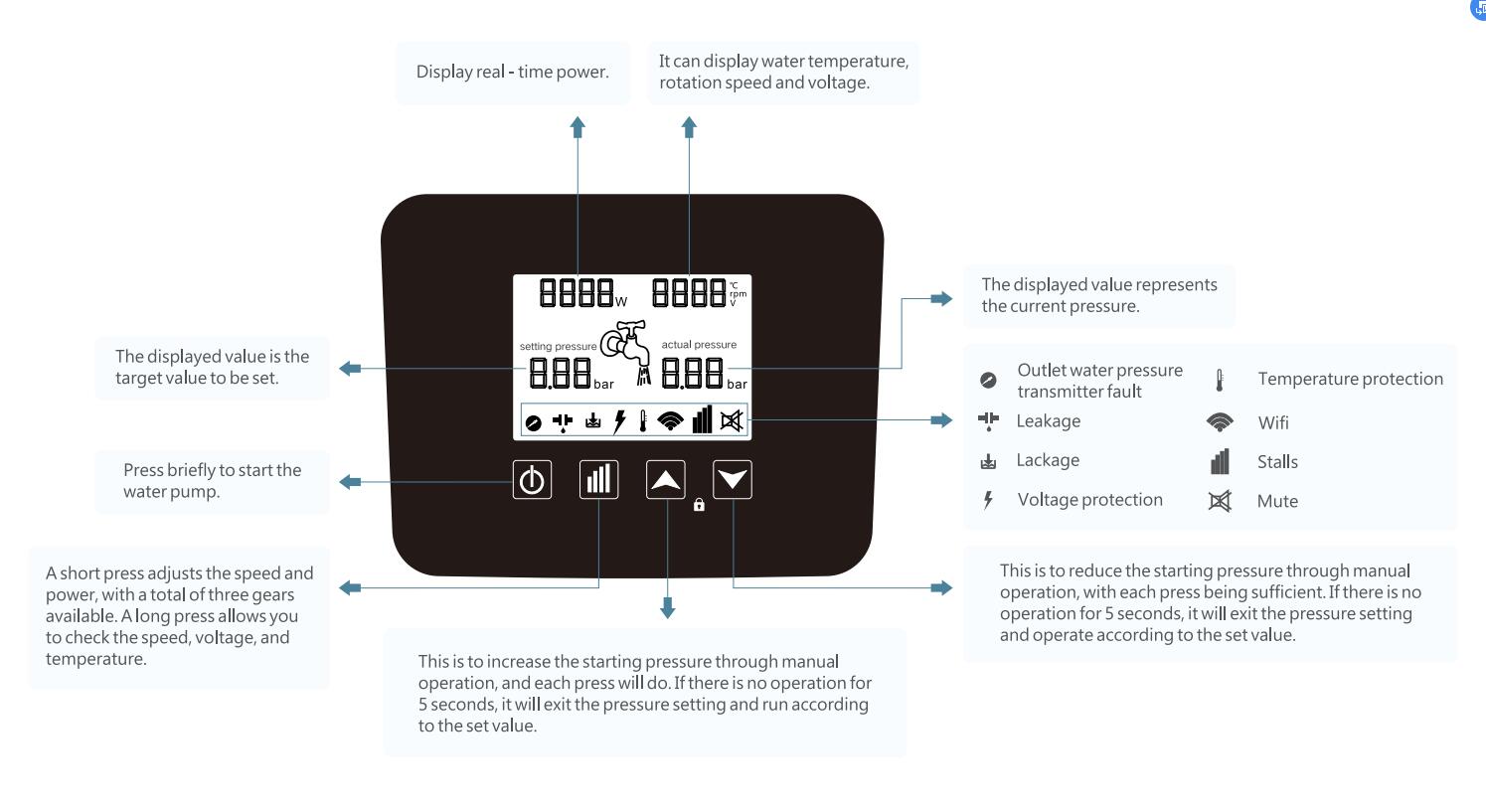

Operation Interface:

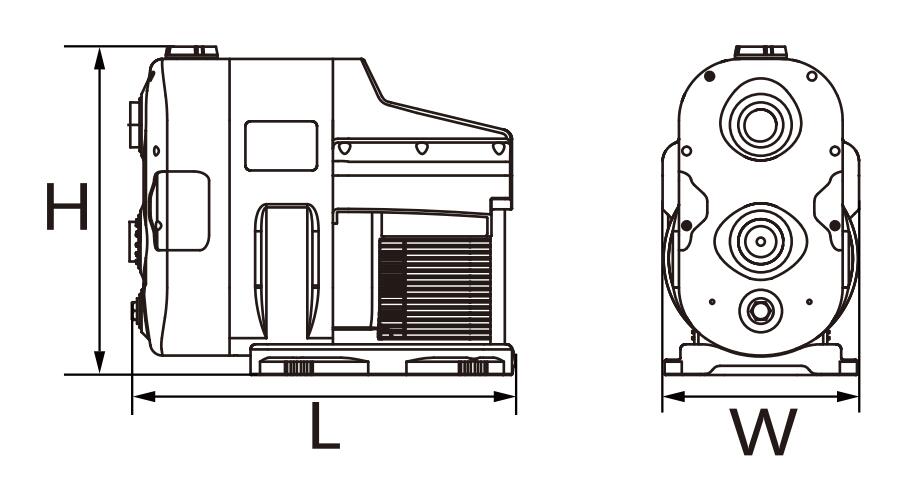

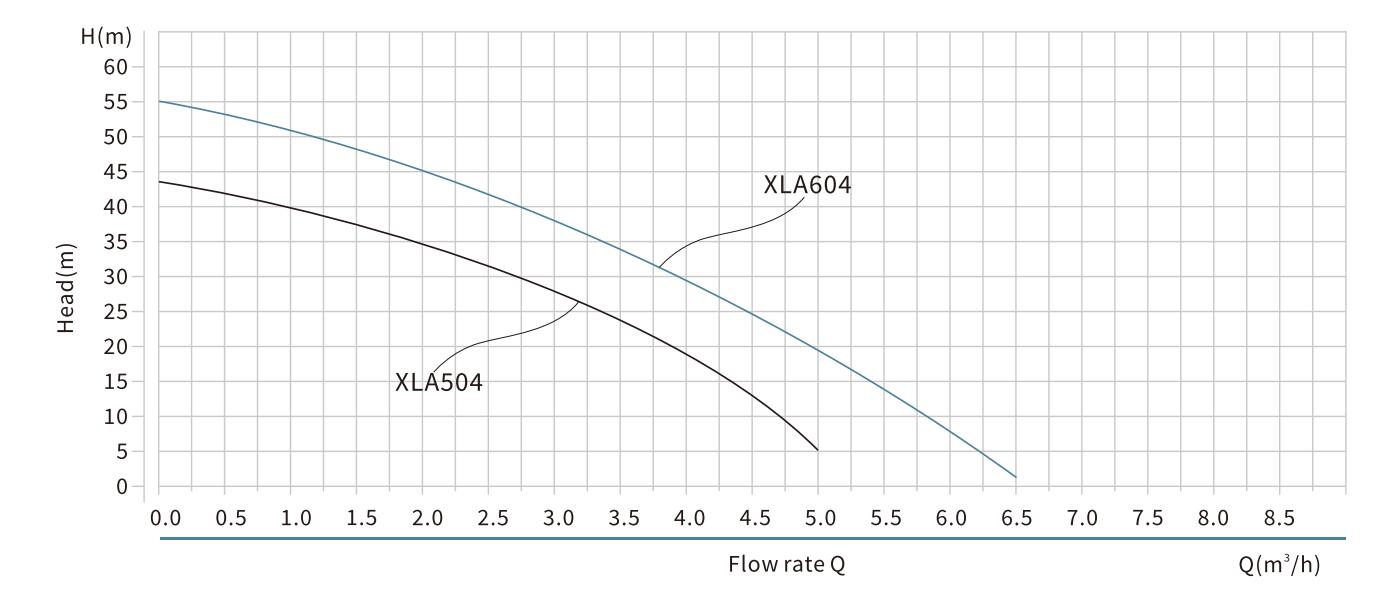

| Model | Frequency（Hz） | Power（W） | Max.flow（L/min） | Max.head（m） | Max.suction（m） | Inlet&Outlet（inch） | Max.rpm（r/min） | N.W.（kg） | G.W.（kg） | Size(L×W×H)（mm） |
| XLA504 | 50/60 | 100-550 | 83 | 45 | 8.5 | 1" x 1" | 5200 | 9 | 11 | 377*192*321 |
| XLA604 | 50/60 | 500-1200 | 100 | 53 | 8.5 | 1" x 1" | 3300 | 9 | 11 | 377*192*321 |
