- Liquid Temperature: Up to 80°C, suitable for both cold and warm water applications.
- Ambient Temperature: Works reliably up to 55°C, suitable for hot climates.
- Insulation Class: Class F, offering strong thermal protection.
- Pump Speed: 4800 r.p.m, providing efficient and stable water flow.
- Protection Rating: IP54, ensuring dust and splash resistance for outdoor use.
- Input Voltage: Single-phase 180–260V, 50/60Hz, adaptable to wide voltage ranges and regional standards.
- High-Efficiency Motor: Equipped with an IE5 permanent magnet motor and 100% copper wire for exceptional performance and durability.
- Energy-Saving Operation: Wide voltage and dual-frequency capability allow for efficient and stable performance under various conditions.
- Smart Control: One-click pressure regulation for easy operation and quick adjustment of system pressure.
- Enhanced Protection: IP54 housing suitable for outdoor installation, offering reliable protection against dust and moisture.
- Anti-Water Hammer Design: Incorporates a non-return water structure to eliminate water hammer and extend system life.
- Advanced Sensors: Built-in high-precision sensors for accurate monitoring and multi-level safety protection.
- Stainless Steel Components: All fluid-contact parts are made of stainless steel, ensuring hygiene, corrosion resistance, and long-lasting durability.
- Wide Application Range: Perfect for water tower boosting, hot water supply, and whole-house pressure systems.
- Well Water & Tower Supply: Ideal for well water lifting and water tower filling, ensuring stable and efficient water transfer.
- Domestic & Garden Use: Suitable for living water supply, household water systems, and garden irrigation, providing consistent water pressure.
- Pressure Boosting Systems: Perfect for pipeline pressure enhancement, and compatible with solar water systems, water heaters, and other equipment.
- Fluid Compatibility: Designed to transfer clean water or non-corrosive liquids free from solid particles or fibers, ensuring smooth operation.
| Component | Material |
| Pump body | Engineering plastic |
| Base&upper cover | Engineering plastic |
| Impeller | Engineering plastic |
| Shaft seal | Stainless steel |
| Shaft | Silicon carbide/graphite |

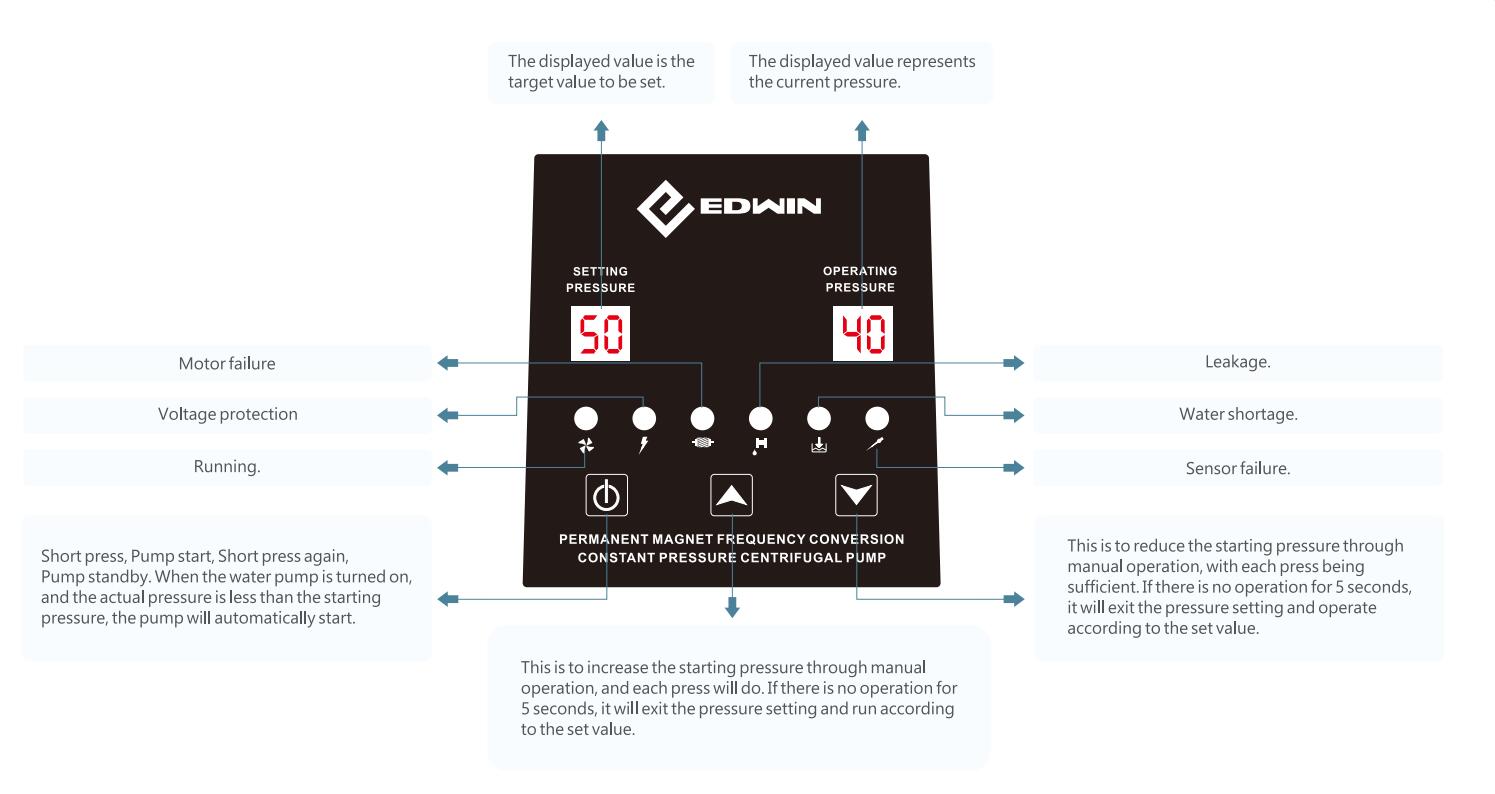

Operation Interface:

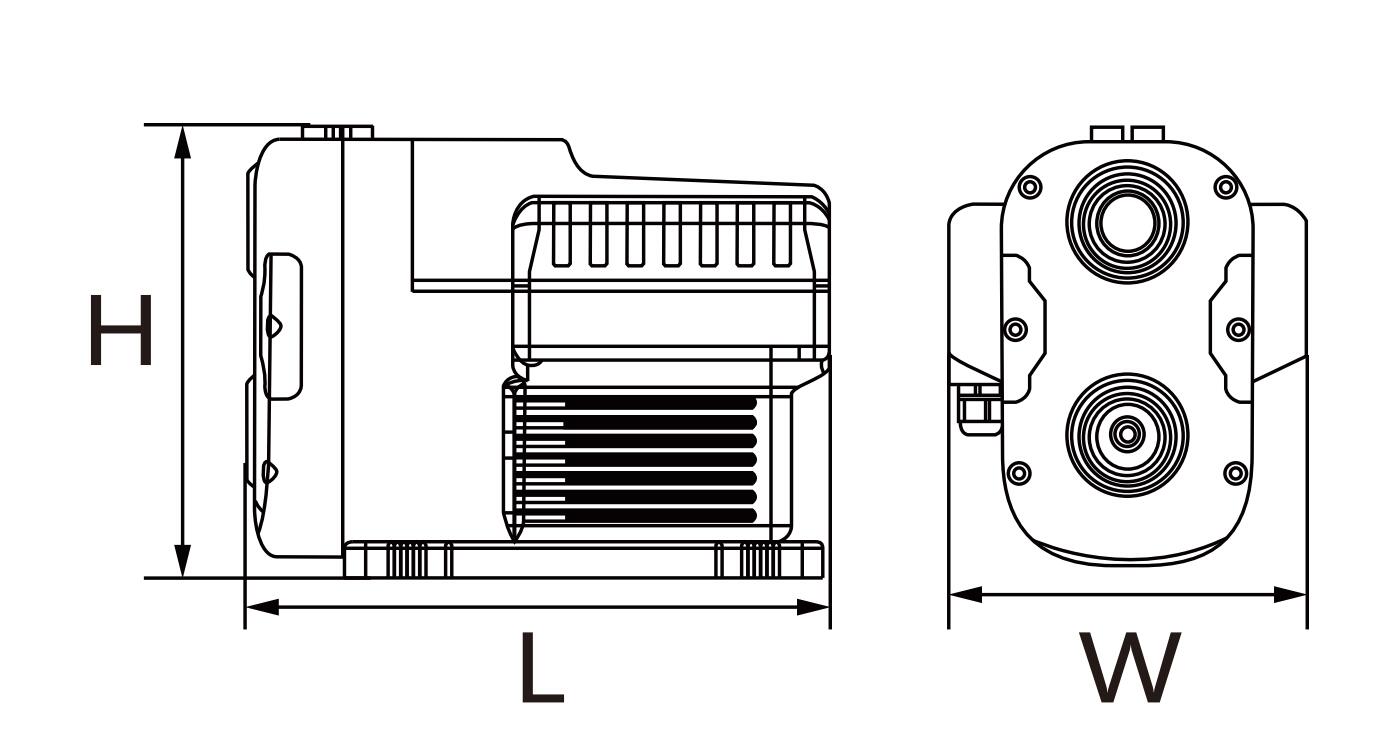

| Model | Voltage（V） | Frequency（Hz） | Power（W） | Power（HP） | Max.flow（L/min） | Max.head（m） | Inlet&Outlet（inch） | N.W.（kg） | G.W.（kg） | Size(L×W×H)（mm） |
| XLA2-30 | 220V±20% | 50/60 | 550 | 0.7 | 75 | 42 | 1" x 1" | 6 | 8 | 283*172*219 |
| XLA3-30 | 220V±20% | 50/60 | 750 | 1 | 91.6 | 45 | 1" x 1" | 6 | 8 | 283*172*219 |
