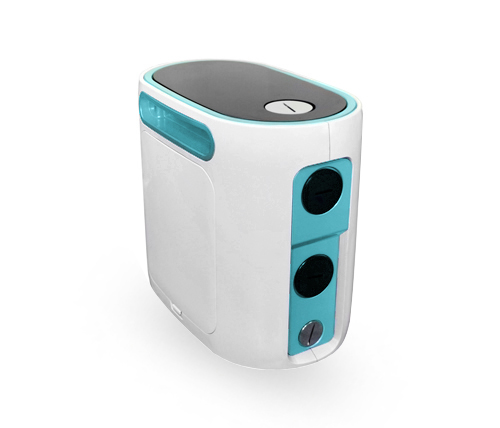

HGZ15/45EA-B Series WIFI Application Self-priming Intelligent Adaptive Frequency Conversion Booster Pump

Power : 600W

WIFI Applicaiton

Self-priming function

Memory function

Hot and cold water
Booster and circulation models

PREV：No previous product
NEXT：No next product

Description
Components
Curves
Performance Data
Contact Us

Description :

HGZ15/45EA-B Series WIFI Application Self-priming Intelligent Adaptive Frequency Conversion Booster Pump is an advanced pump that combines advanced technology with excellent performance. Energy-saving and high efficiency, numerous functions, compact structure, easy installation, it is an excellent choice for a wide range of applications.

This booster pump has many excellent features:

Energy-saving technology: equipped with high-efficiency motor and intelligent frequency conversion system, optimize energy consumption and reduce operating costs.
Self-priming ability: allows the pump to pump water quickly and efficiently even when initial startup is required.
Intelligent adaptive control: automatically adjusts performance according to actual water demand to ensure stable pressure and flow.
Silent operation: The unique design reduces the noise to less than 50db when running at full load, providing a quiet environment.
Temperature control start and stop: operates in a cycle mode based on temperature control, automatically starting and stopping according to the set temperature.
Intelligent memory function: learns your usage pattern, saving energy and improving convenience.
Water-cooled design: The water-cooled motor dissipates heat efficiently, ensuring optimal performance even in high ambient temperatures and extending the service life of the pump.
Intelligent dual control: With intelligent flow and pressure control functions, parameters can be precisely adjusted to meet continuous water pressure and flow requirements.
Hot and cold water compatibility: It can handle hot and cold water at the same time, integrating boosting and circulation.
Comprehensive protection: including stall protection, undervoltage protection, abnormal temperature reminder, waterless operation protection, water leakage protection, etc.
High-quality Sentasa sensors and switches: ensure accurate testing, reliable operation, intelligent and stable.
In short, HGZ15/45EA-B series WIFI application timing function self-priming intelligent adaptive variable frequency booster pump is a reliable and advanced water supply solution for residential, commercial, garden irrigation and other applications. It has intelligent functions, energy-saving design, multiple protection functions, convenient timing and WIFI control to meet diverse water supply needs and provide flexibility and convenience.

Part and Material :

Part	Material
Stator winding	Copper wire + silicon steel sheet
Rotor	Ceramic + silicon steel sheet
Pump body	SUS 304
Impeller	PPO
Check valve	Brass

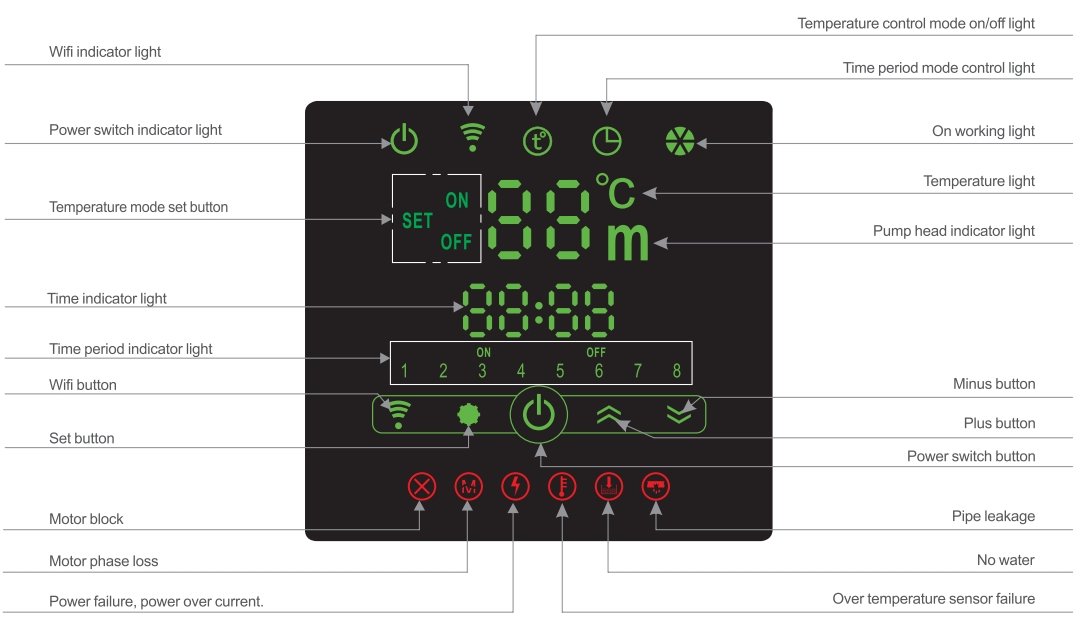

Fuction panel :

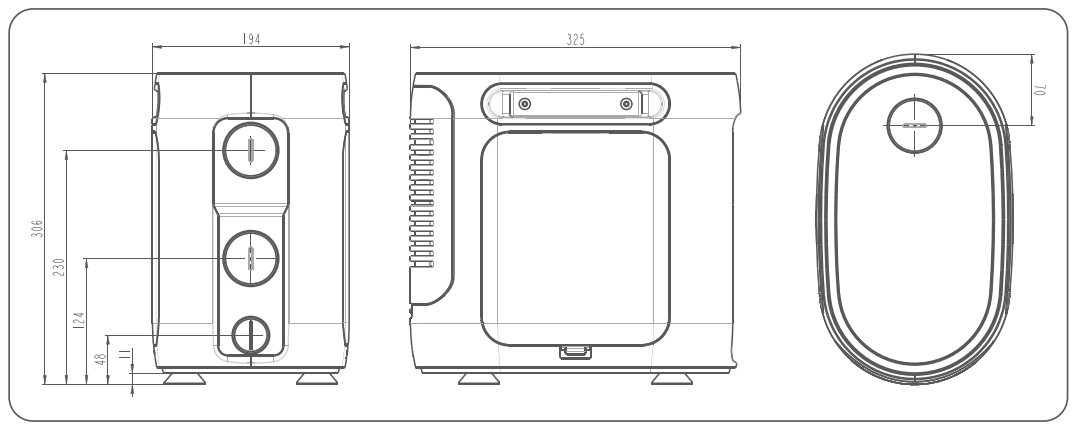

Dimension :

Connection:

Installation:

Performance Curves :

Performance Data:

Model	Connection size（Inch）	Power (W)	Rated flow （m³/h）	Rated head （m）	Max.head （m）	Max.suction （m）
HGZ15/45EA-B	1”	600	2.5	25	45	8
