- Liquid Temperature: 0–70°C
- Ambient Temperature: ≤40°C
- Insulation Class: F
- Protection: IPX4
- Input Voltage: Single-phase 180–260V, 50/60Hz
- IE5 Permanent Magnet Motor with 100% copper winding for high efficiency and durability.
- Energy-Saving & Wide Voltage Use: Dual-frequency design with simple operation and multiple protections.
- One-Click Pressure Regulation: Easy adjustment with IP54 protection, suitable for outdoor use.
- Self-Start Function: Automatically starts every 12 hours to prevent impeller blockage during long idle periods.

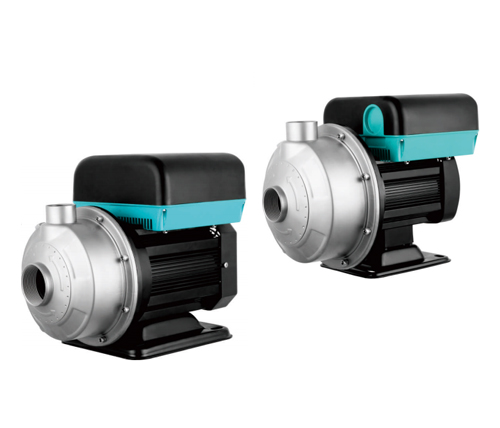

The XLSA Series combines energy efficiency, smart control, and reliable stainless steel construction, making it ideal for modern residential, commercial, and industrial water systems.
The XLSA Series is designed for low-viscosity, neutral, non-explosive liquids without solids or fibers. Ideal for air-conditioning circulation, cooling systems, water treatment, industrial cleaning, and fluid transport in food, beverage, and agricultural applications. (Oil-based liquids require a customized pump.)

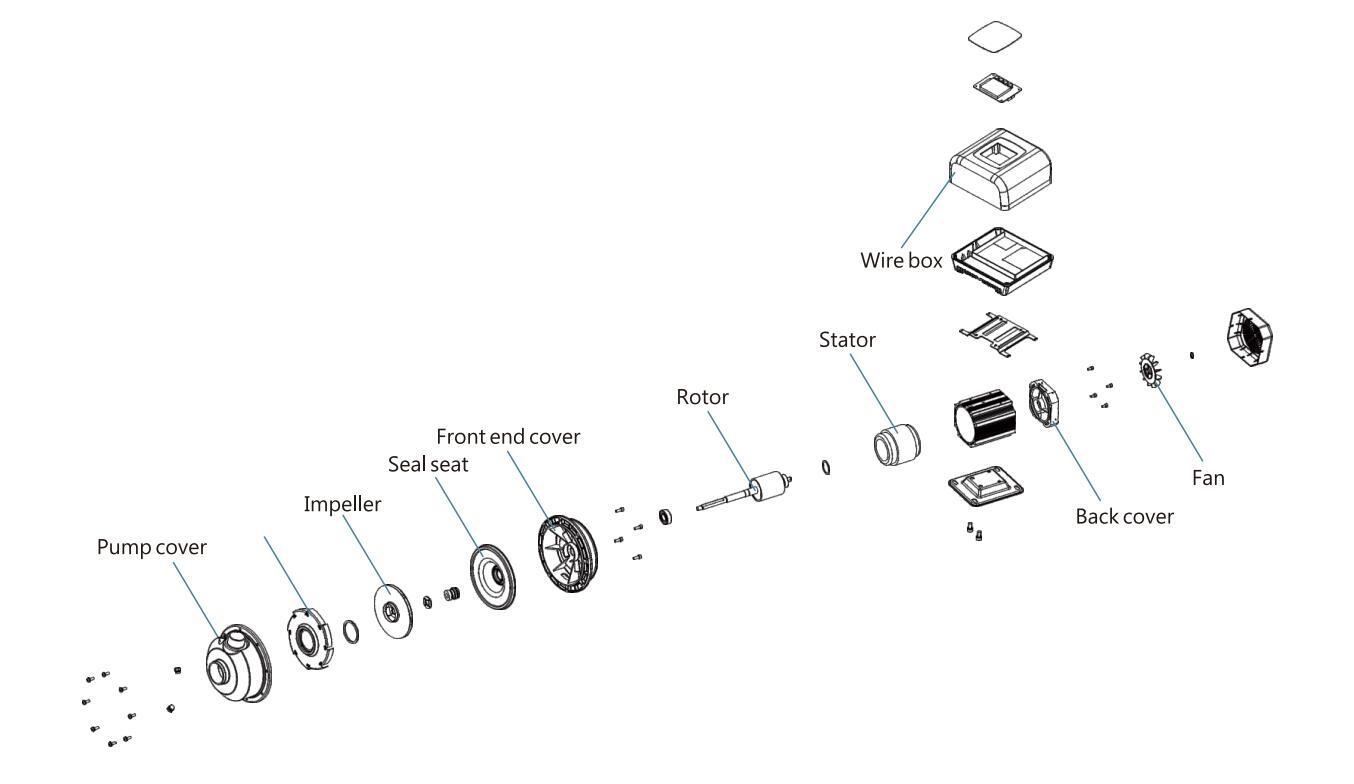

| Component | Material |
| Pump body | Stainless steel |
| Motor housing | Aluminum |
| Impeller | Stainless steel |
| Pump support | Aluminum |
| Mechanical seal | Silicon carbide/graphite |

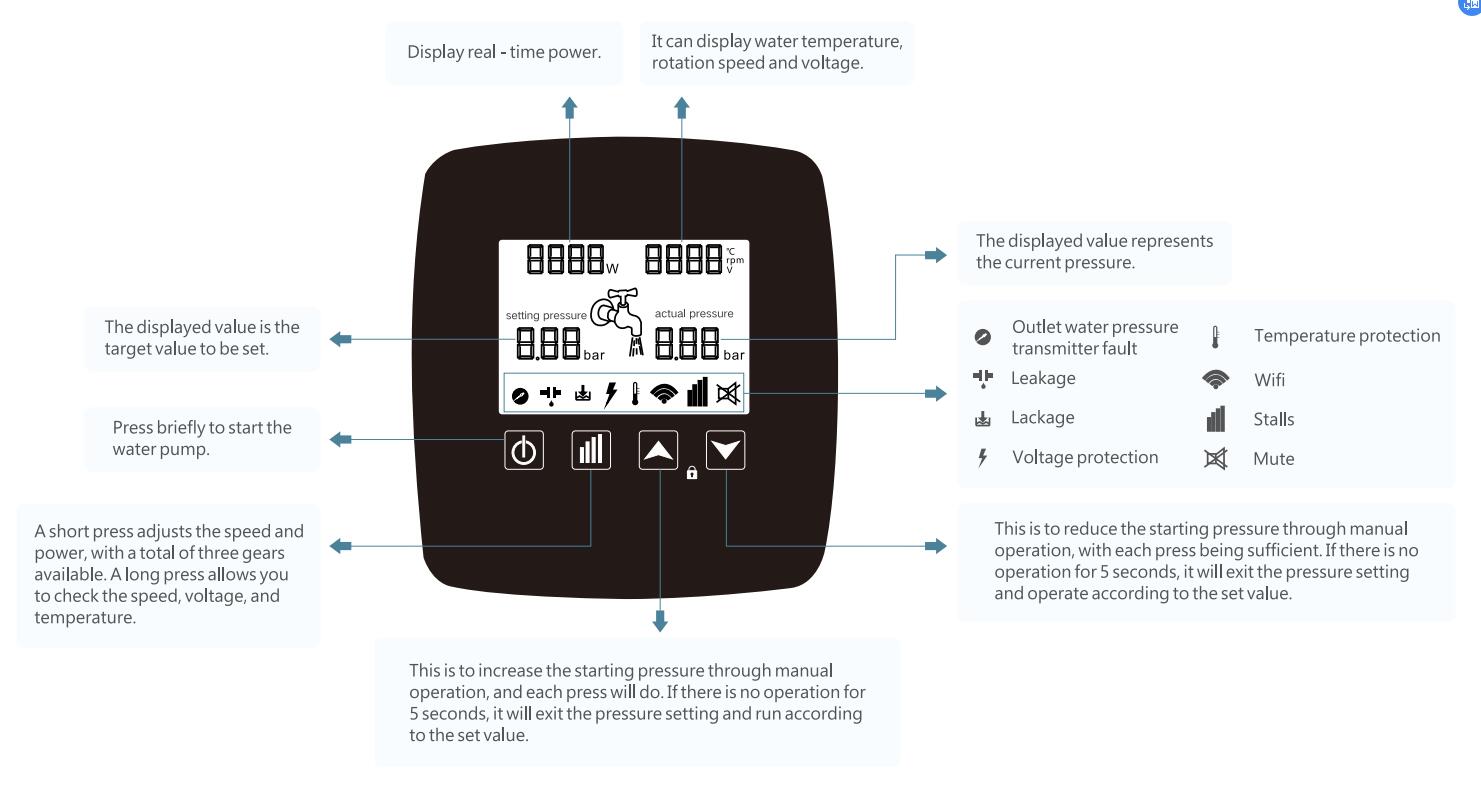

Operation Interface:

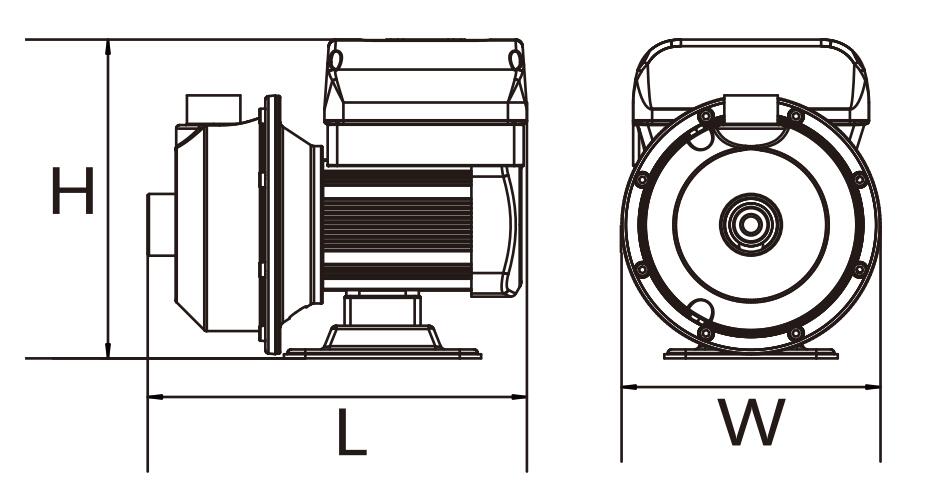

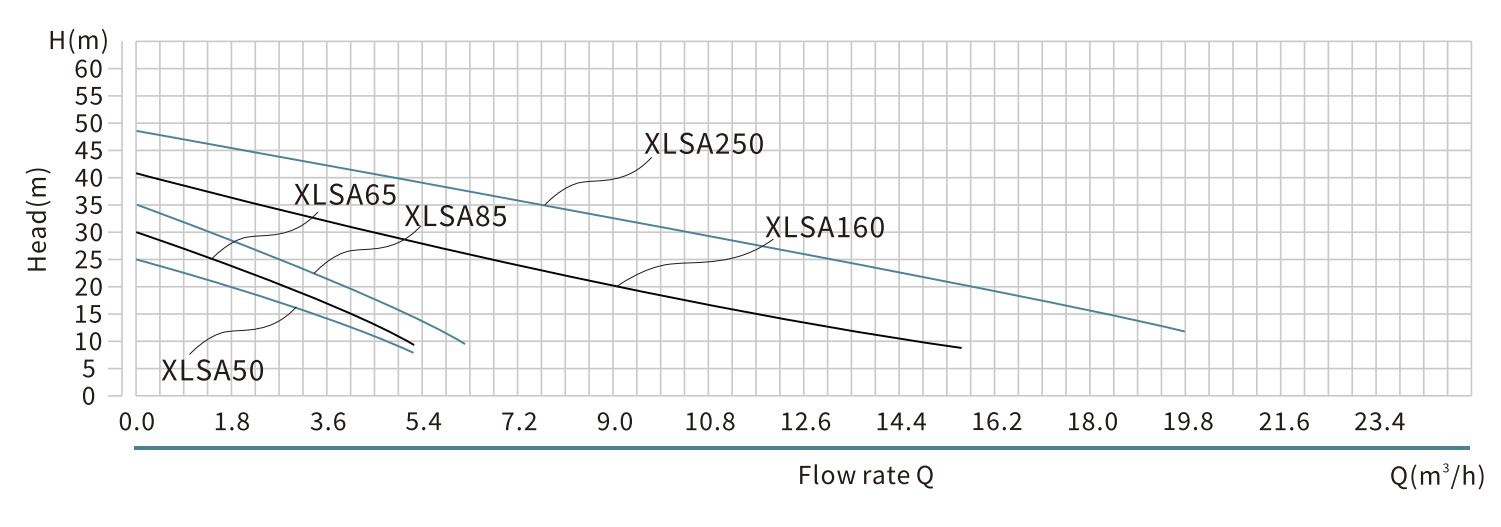

| Model | Frequency（Hz） | Power（W） | Max.flow（L/min） | Max.head（m） | Max.rpm（r/min） | Inlet&Outlet（inch） | N.W.（kg） | Size(L×W×H)（mm） |
| XLSA50 | 50/60 | 100-370 | 83 | 25 | 3200 | 1.25" x 1" | 10 | 309*218*266 |
| XLSA65 | 50/60 | 100-550 | 83 | 30 | 3500 | 1.25" x 1" | 10 | 309*218*266 |
| XLSA85 | 50/60 | 100-750 | 100 | 35 | 3700 | 1.25" x 1" | 10 | 309*218*266 |
| XLSA160 | 50/60 | 100-1100 | 267 | 42 | 4500 | 1.5" x 1.25" | 12 | 320*218*269 |
| XLSA250 | 50/60 | 100-2200 | 333 | 47 | 4400 | 2" x 1.25" | 19 | 359*218*320 |
EDWIN PUMP is a professional China borewell pumps manufacturers and deep well pumps factory, which supply a wide range of water pumps and water treatment peripheral products to customers around the world.
Our factory mainly produce three types of pumps: deep well pumps, sewage submersible pumps and household borewell pumps. At the same time, when customers have demand, we also provide customers with other related water treatment products by a professional working team from the company.
