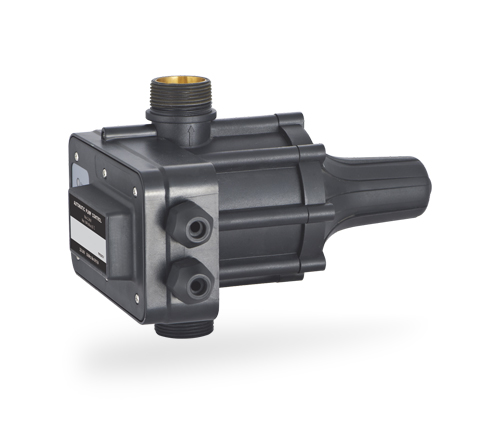

EPC-7 Series 30A 100V to 240V Dry-running Protection Automatic Pressure Switch Used in Water System

EPC-7 Series 30A 100V to 240V Dry-running Protection Automatic Pressure Switch Used in Water System

Starting pressure : 1.2bar - 2.2bar

Max. Rated Current : 30A

Max. Working Pressure : 10bar

Rated Voltage : 100V-120V or 220V-240V or 110V-240V

Frequency : 50/60Hz

Max. Ambient Temperature : 55℃

Protection degree : IP54

Dry-running Protection

Automatic Pressure Switch

Used in Water System

Contact Us

PREV：EPC-5.1 Series Low Noise Easy Operation Automatic Pressure Switch for Water Pumps
NEXT：EPC-12 Series 9.8 Bar Working Pressure IP65 Protection Rating New Design Digital Screen Pressure Switch for Water Pumps

Description
Components
Curves
Performance Data
Contact Us

Technical Parameters :

Rated voltage	220-240V	110-120V	110-240V
Power Frequency	50/60HZ	50/60HZ	50/60HZ
Max using current	30A	30A	30A
Max power	2.2KW	1.1KW	2.2KW
Starting pressure setting	1.2bar ; 1.5bar ; 2.2bar	1.2bar ; 1.5bar ; 2.2bar	1.2bar ; 1.5bar ; 2.2bar
Max working pressure	10bar	10bar	10bar
Connection thread	G1” ; G1.25”	G1” ; G1.25”	G1” ; G1.25”
Protection rating	IP54	IP54	IP54
Max working temperature	55℃	55℃	55℃
