This 3 Inch Deep Well Borehole Submersible Water Pump is the perfect choice for those looking for a dependable and efficient water pumping solution. Its industry-leading features, such as the sand-resistant impeller and low loss vortex design, set it apart from the competition. Invest in this pump today and experience the difference it can make in your water pumping needs.
1、With its powerful performance and durable construction, this Deep Well Pump is built to withstand the test of time
2、The 3SK 3" Simple Maintenance Sand Resistant Impeller ensures smooth operation and prevents clogging, even in sandy or gritty water conditions. Say goodbye to frequent maintenance and hello to hassle-free pumping.
3、One of the standout features of this Borehole Pump is its low loss vortex design. This innovative technology minimizes energy consumption, resulting in cost savings and reduced environmental impact.
4、Installation and operation of this Submersible Pump are incredibly straightforward, thanks to its user-friendly design.
Maximum fluid temperature up to +40°C
Maximum sand content : 0.15%
3SK minimum well diameter : 3"
4SK minimum well diameter : 4"
Rewindable motor
Single-phase:220 - 240V/50Hz
Three-phase: 380 - 415V/50Hz
Equip with start control box or digital auto-control box

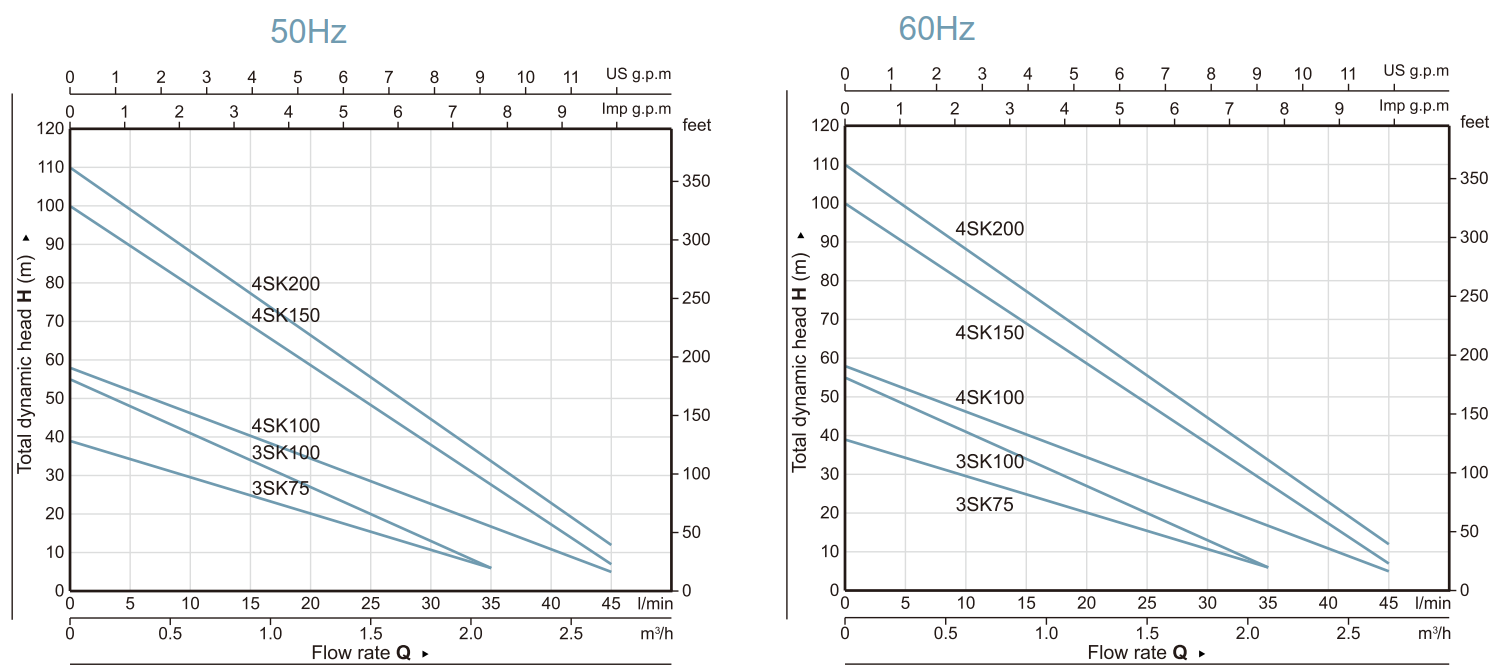

Curve tolerance according to ISO 9906
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
(according to our general sales conditions)
CE Certificate :
Product Line :
|
Components |
Material |
|
Delivery casing |
Cast-Cu ASTM C85500 |
|
Suction lantern |
1, Cast-Cu ASTM C85500 2, AISI 420 SS |
|
Diffuser |
1, Cast-Cu ASTM C85500 2, AISI 420 SS |
|
Impeller |
Cast-Cu ASTM C85500 |
|
Strainer |
AISI 304 SS |
|
Motor external casing |
AISI 304 SS |
|
Oil chamber |
1, Cast-Cu ASTM C85500 |
|
2, AISI 420 SS |
|
|
3, Cast-iron ASTM NO. 30 |
|
|
Bottom support |
AISI 304 SS |
|
Mechanical seal |
Graphite - Ceramic |
|
Shaft |
AISI 304 SS - ASTM 5140 |
