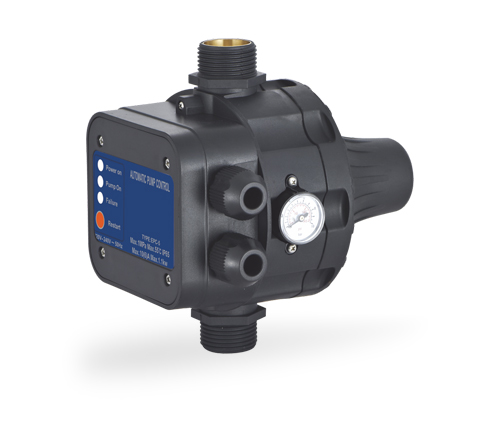

EPC-5 Series Temperature-resistant Anticorrosive Automatical Pressure Switch for Water System

Starting pressure : 1.2bar - 3.0bar

Max. Rated Current : 10A

Max. Working Pressure : 10bar

Rated Voltage : 100V-120V or 220V-240V or 110V-240V

Frequency : 50/60Hz

Max. Ambient Temperature : 55℃

Protection degree : IP65

Temperature-resistant

Anticorrosive

Automatical

Pressure Switch for Water System

PREV：EPC-4 Series 550W to 1.1KW Close Nipple Rain-Proof Stable Pressure Switch Used in Water System
NEXT：EPC-5.1 Series Low Noise Easy Operation Automatic Pressure Switch for Water Pumps

Description
Components
Curves
Performance Data
Contact Us

Description :

The EPC-5 Series Temperature-resistant Anticorrosive Automatic Pressure Switch is specifically designed for water systems. It is built to withstand high temperatures and resist corrosion, making it suitable for various industrial applications.

Key Features :

1、This pressure switch is equipped with an automatic control feature, allowing it to monitor and regulate the pressure of the water system. It ensures that the pressure remains within the desired range, preventing any damage or malfunction.
2、The EPC-5 Series is made from high-quality materials that are resistant to corrosion, ensuring its durability and longevity. It can withstand harsh environments and is suitable for use in industries such as chemical processing, oil and gas, and water treatment.
3、Additionally, this pressure switch has a temperature-resistant design, allowing it to operate efficiently in extreme temperatures. It can withstand both high and low temperatures without compromising its performance.
4、The EPC-5 Series Temperature-resistant Anticorrosive Automatic Pressure Switch is a reliable and efficient solution for water systems that require precise pressure control and resistance to corrosion and high temperatures.
5、Electrical switch utilized in water distribution systems.
6、It automatically initiates the electric pump upon a decrease in pressure (upon the opening of taps), and ceases operation when the fluid flow interrupts at the maximum pressure level of the electric pump (upon the closing of taps).
7、Joint screw: male G1".
8、Completely replaced conventional pump control systems composed of pressure switches, pressure tanks, and check valves, among other components.
9、Halts the water pump in the event of water shortage.
10、 Customizable settings.
11、1 year warranty.

Optionals :

-Color: Customer-defined, customizable according to specific requirements.

-G1" plastic pipe connector enables swift connection to water pump.

-Length of power cable may be tailored to meet specific customer needs.

-Starting pressure can be adjusted during installation within a range of 1.2 to 3.0 bar.

Technical Parameters :

Rated voltage	220-240V	110-120V	110-240V
Power Frequency	50/60HZ	50/60HZ	50/60HZ
Max using current	10A	10A	10A
Max power	1.1KW	0.55KW	1.1KW
Starting pressure setting	1.2bar ; 1.5bar ; 2.2bar	1.2bar ; 1.5bar ; 2.2bar	1.2bar ; 1.5bar ; 2.2bar
Max working pressure	10bar	10bar	10bar
Connection thread	G1”	G1”	G1"
Protection rating	IP65	IP65	IP65
Max working temperature	55℃	55℃	55℃
