5QGD 5" High Head Energy Efficient 304 SS Casing Screw Borehole Submersible Pump for Garden Use and Irrigation

Minimum well diameter : 5"

Top chock : iron

High Head
Energy Efficient
304 SS Casing
Screw Borehole Submersible Pump
for Garden Use and Irrigation

PREV：3QGD 3" High Sand Resistant Superior Quality 304 SS Strainer Screw Borehole Submersible pump
NEXT：4SN2 4" Multiple Impeller Cast Iron Rust Proof Pump Head Vortex Borehole Submersible Pump for Domestic Use

Description
Components
Curves

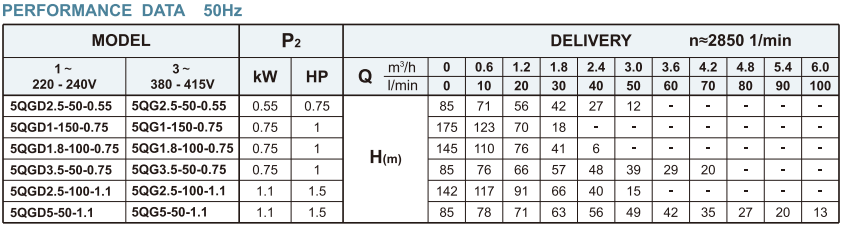

Performance Data
Contact Us

Description :

The 5QGD 5" High Head Energy Efficient Screw 304 SS Casing Borehole Submersible pump is a high-quality and efficient water pumping solution specifically designed for borehole applications. This pump features a 5" size, a high head capacity, a screw design, and a casing made of 304 stainless steel.The 5" size of the pump makes it suitable for various borehole sizes, allowing for efficient water pumping in residential, commercial, or agricultural settings.With its high head capacity, the pump is capable of lifting water to greater heights, making it ideal for applications where water needs to be pumped to elevated locations.

Key Features :

1、The screw design of the pump ensures smooth and efficient water pumping . The screw mechanism allows for a continuous flow of water, minimizing the risk of clogging or blockages and providing reliable performance.
2、The casing of the pump is made of 304 stainless steel, which offers excellent corrosion resistance and durability. This ensures that the pump can withstand various water conditions and provides long-lasting performance.
3、The submersible design of the pump allows it to be fully submerged in water, maximizing efficiency and minimizing noise. It eliminates the need for priming and reduces the risk of cavitation, ensuring smooth and efficient operation.
4、Additionally, the pump is designed with energy efficiency in mind, optimizing power consumption levels to save energy and reduce operating costs.

Operating Conditions :

Maximum fluid temperature up to +40C
Maximum sand content : 3%
Minimum well diameter : 5"

Motor and Pump :

Rewindable motor
Single-phase:220 - 240V/50Hz
Three-phase: 380 - 415V/50Hz
Single phase motor with built-in capacitor
Curve tolerance according to ISO 9906

Options on request :

Special mechanical seal
Other voltages or frequency 60Hz

Warranty : 2 years

(according to our general sales conditions)

CE Certificate :

Product Line :

Components :

Components	Material
Delivery casing	AISI 304 SS
Strainer	AISI 304 SS
Motor external casing	AISI 304 SS
Oil Chamber	Cast-iron ASTM NO.30
Bottom support	AISI 304 SS
Mechanical seal	Graphite-Ceramic
Shaft	AISI 304 SS-ASTM 5140
Seal lubricant oil	Oil for food machinery and pharmaceutic use

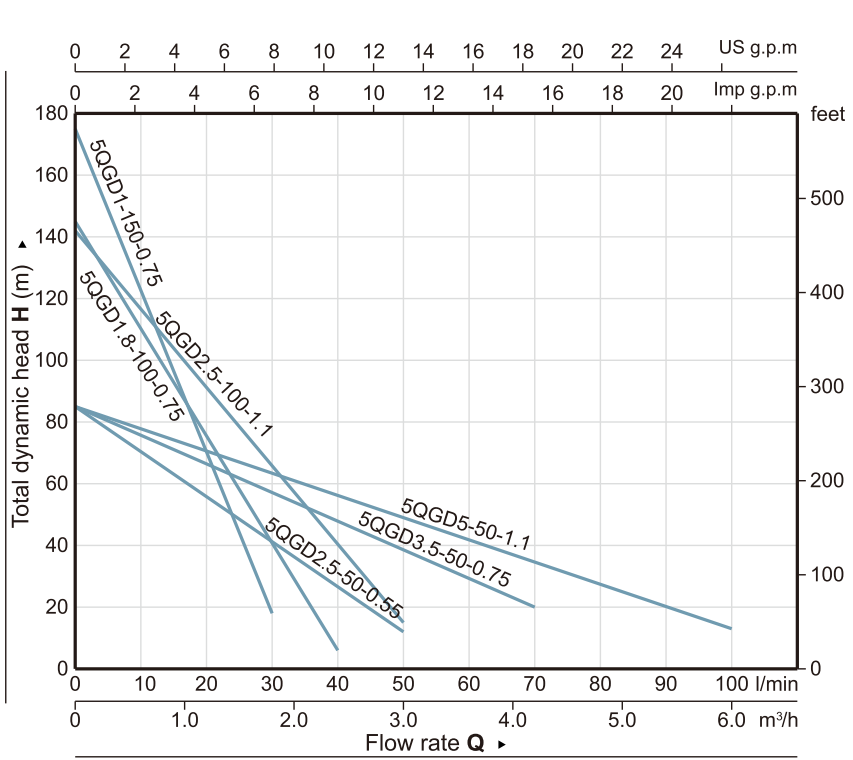

Performance Curves :
