3QGD 3" High Sand Resistant Superior Quality 304 SS Strainer Screw Borehole Submersible pump

Minimum well diameter : 3"

Oil Chamber : Cast iron

High Sand Resistant

Superior Quality

304 SS Strainer

Screw Borehole Submersible pump

PREV：4PN 4" Hermetically Sealed Motor Low Noise Vortex Borehole Submersible Pump
NEXT：5QGD 5" High Head Energy Efficient 304 SS Casing Screw Borehole Submersible Pump for Garden Use and Irrigation

Description
Components
Curves

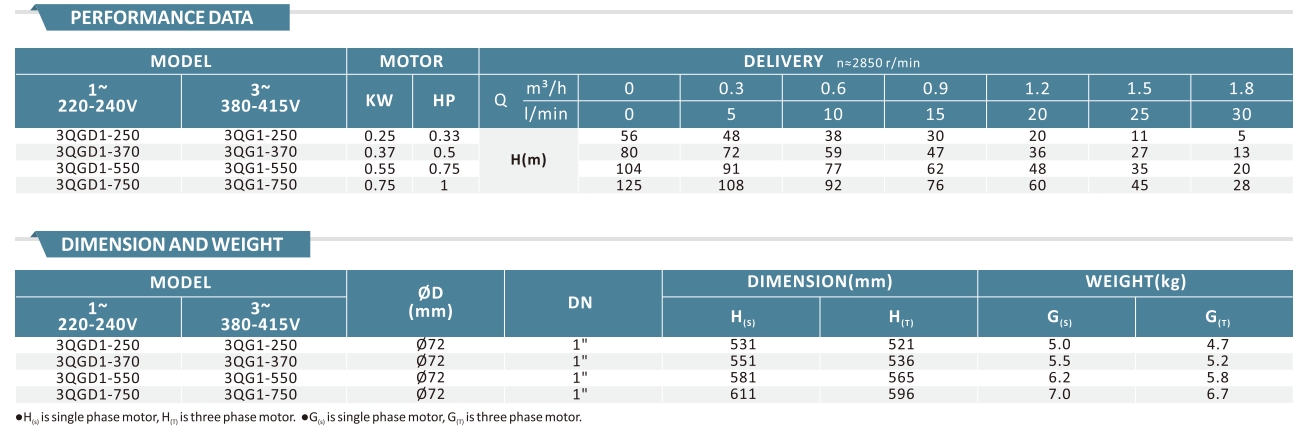

Performance Data
Contact Us

Description :

EDWIN brand high-quality 3QGD 3" High Sand Resistant Superior Quality 304 SS Strainer Screw Borehole Submersible Pump is designed with utmost precision and engineered to deliver exceptional performance, this product is a reliable solution for your pumping needs.

Key Features :

1、Impeller with sand resistance capability , the degree of sand tolerance can reach up to 3%.
2、Crafted from superior quality 304 stainless steel, this submersible pump ensures durability and longevity even in demanding environments. Its high sand resistance capability allows for seamless operation, making it ideal for borehole applications.
3、Equipped with a 3" diameter, this pump is designed to efficiently draw water from deep wells, ensuring a steady supply for various purposes. Whether it's for domestic use, irrigation, or industrial applications, this submersible pump delivers consistent and reliable performance.
4、The 304 SS strainer further enhances the pump's efficiency by preventing the entry of debris and other particles, ensuring smooth operation and reducing maintenance requirements. This feature ensures that you can rely on this pump for uninterrupted water supply.
5、With its professional-grade construction and superior materials, this screw borehole submersible pump is built to withstand the test of time and deliver exceptional results. It is easy to install and requires minimal maintenance, providing you with a hassle-free experience.

Operating Conditions :

Maximum fluid temperature up to +40°C
Maximum sand content : 3%
3QG minimum well diameter: 3"
4QG minimum well diameter: 4"

Motor and Pump :

Rewindable motor
Single-phase:220 - 240V/50Hz
Three-phase: 380 - 415V/50Hz
Single phase motor with built-in capacitor
Curve tolerance according to ISO 9906

Options on request :

Special mechanical seal
Other voltages or frequency 60Hz

Warranty : 2 years

(according to our general sales conditions)

CE Certificate :

Product Line :

Components :

Components	Material
Delivery casing	AISI 304 SS
Strainer	AISI 304 SS
Motor external casing	AISI 304 SS
Oil chamber	Cast-iron ASTM NO.30
Bottom support	AISI 304 SS
Mechanical seal	Graphite-Ceramic
Shaft	AISI 304 SS-ASTM 5140
Seal lubricant oil	Oil for food machinery and pharmaceutic use

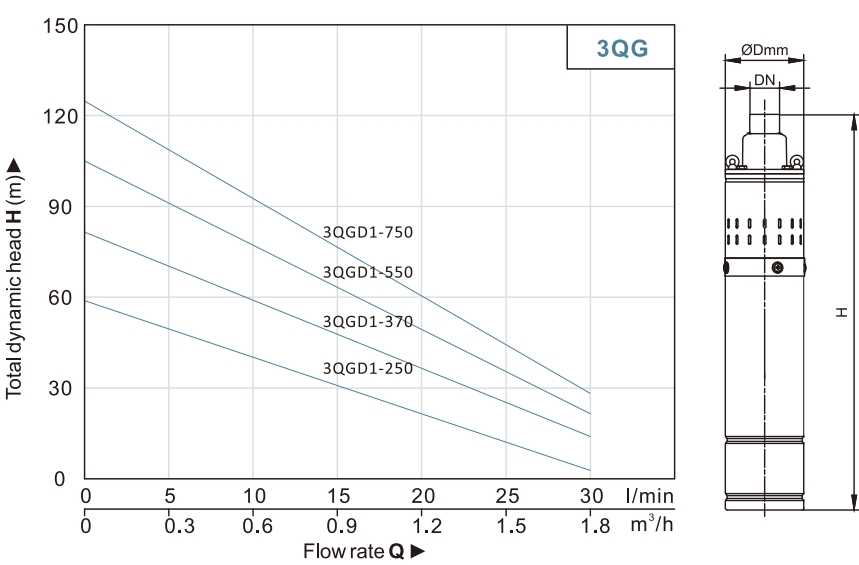

Performance Curves :
