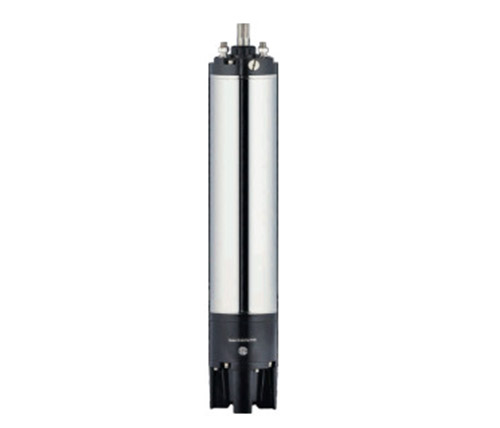

The 6HC 6" AISI Thrust Bearing Multiple Protection Borehole Submersible Motor is a high-quality and durable motor specifically designed for borehole submersible applications. This motor features a 6" size, an AISI thrust bearing, and multiple protection features.
1、The 6" size of the motor makes it suitable for larger boreholes, providing efficient water pumping for various applications such as agricultural irrigation, industrial processes, or other high-demand scenarios.
2、The AISI thrust bearing is designed to handle the axial load generated by the pump, ensuring smooth and reliable operation. This bearing is made from high-quality AISI stainless steel, providing durability and resistance to corrosion for long-term use.
3、The motor also comes with multiple protection features to ensure its safety and longevity. These protection features may include thermal overload protection, overvoltage protection, undervoltage protection, and short circuit protection. These safeguards help prevent damage to the motor in case of electrical faults or abnormal operating conditions.
4、The submersible design of the motor allows it to be fully submerged in water, maximizing efficiency and minimizing noise. It eliminates the need for external cooling mechanisms and reduces the risk of motor damage caused by water ingress.

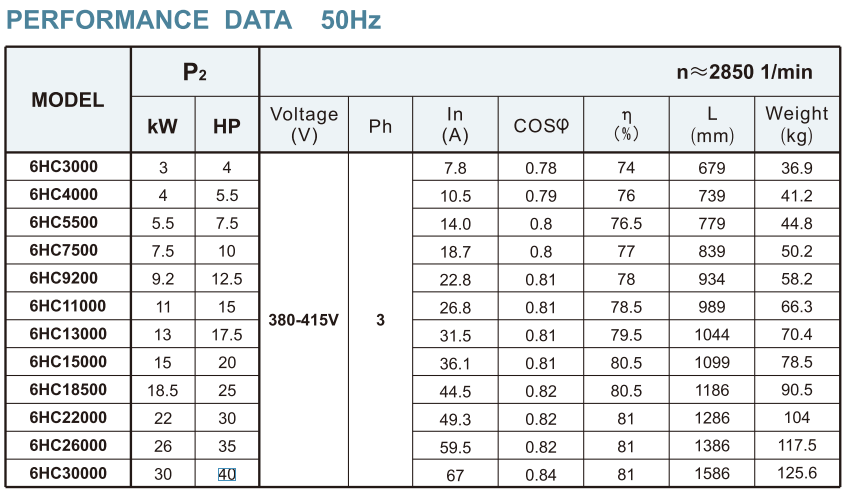

Speed: 2850rpm
Insulation class: F
Protection grade:IP 68
Maximum fluid temperature up to +35℃
Minimum well diameter:6"
Rewindable motor
Three-phase:380-415V/50Hz
①Direct start (1 cable)
②Star-delta start (2 cables)
Equip with start control box or digital auto-control box
NEMA dimension standards
Special mechanical seal
Other voltages or frequency 60Hz
(according to our general sales conditions)
|
Components |
Material |
|
Motor external casing |
AISI 304 SS |
|
Oil chamber |
Cast-iron ASTM NO.30 |
|
Bottom support |
Cast-iron ASTM NO.30 |
|
Shaft |
AISI 304 SS - AISI420 |
|
Seal |
NBR Carbon-SIC/TC |
|
Thrust bearing |
AISI420 |
|
Radial bearing |
Carbon with antimony |
