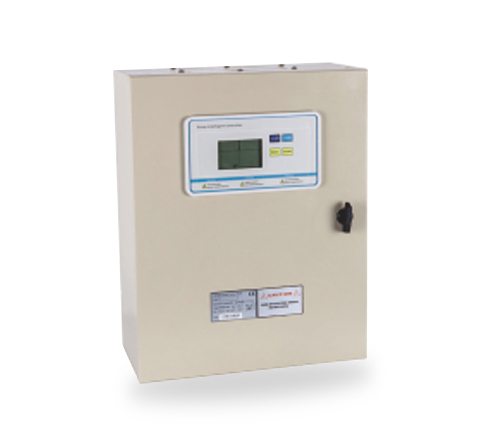

LAT-4 Three-phase 92KW Advanced Control Box for Borehole Submersible Pump

Operating conditions:

Rated input voltage: AC380V, Three phase 50Hz/ 60Hz
Rated output power: 18.5-92kW
Protection class: IP54
Working temperature: 25-+55C
Working humidity: 20%-90%RH, no condensing

Function description:

1. Online remote control

2. Overload protection

3. Anti-stall protection for the pump

4. Dry running protection

5. Under and over-voltage protection

6. Protection against phase loss

7. Push-button calibration function

8. Automatic state LCD screen locking function

9. Display of the last five pump faults

10. Display of the pump running time

11. Control and protection of universal pumps

12. Control of pump start/stop using water level sensor, float switch, or pressure switch

13. Suitable for water supply controlled by liquid level via float switch or liquid probe

14. Suitable for water supply controlled by pressure via pressure switch and tank

15. Suitable for drainage controlled by liquid level via float switch or liquid probe.

Dimension:

400 x 300 x 205 mm .
