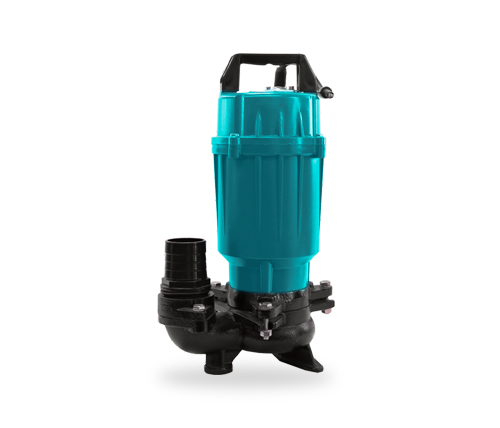

The V Series Small Electrical Field Progress Steadily Sewage Pump is a specialized pump designed for handling sewage and wastewater in various small-scale electrical field applications. It is known for its steady progress and reliable performance.
One of the key features of this sewage pump is its ability to handle sewage and wastewater effectively. It is specifically designed to pump and transport liquids containing solid particles, such as sewage, sludge, and other waste materials. This makes it suitable for applications in small-scale electrical fields where the disposal of wastewater is required.
The pump is typically compact in size and easy to install, making it suitable for small-scale applications where space may be limited.
The V Series sewage pump is known for its steady progress, meaning it operates consistently and reliably over time. It is designed to handle continuous operation without experiencing significant fluctuations or interruptions.
Additionally, these pumps are often equipped with features such as automatic float switches or level sensors to control the pump's operation based on the liquid level. This ensures efficient and reliable pumping while preventing overflow or dry running.
The V Series Small Electrical Field Progress Steadily Sewage Pump is a reliable and efficient solution for handling sewage and wastewater in small-scale electrical field applications. Its ability to handle solid particles, steady progress, and compact design make it suitable for various sewage pumping needs.
Max immersion depth : 5m
Max liquid temperature : 40°C
Copper winding
Built-in thermal protector
Insulation class : B
Protection class : IPX8
|

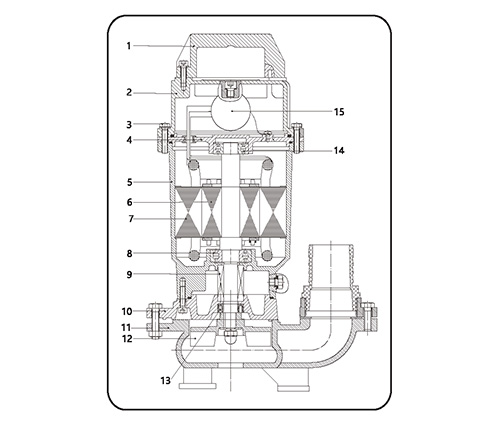

NO. |
NAME |
MATERIAL/SPEC. |
|
1 |
Handel |
ABS |
|
2 |
Capacitor Cover |
ZL102 |
|
3 |
Screw |
Stainless steel |
|
4 |
Upper Cover |
ZL102 |
|
5 |
Motor cover |
ZL102 |
|
6 |
Motor |
ZL102(Motor casing) |
|
7 |
Rotor |
45#Carbon steel & 2Cr13 Stainless |
|
8 |
Bearing |
|
|
9 |
Mechanical seal |
Ceramic/Graphite |
|
10 |
Oil cylinder |
HT200 |
|
11 |
Pump body |
HT200 |
|
12 |
Impeller |
HT200 |
|
13 |
Oil Seal |
|
|
14 |
Bearing |
|
|
15 |
Capacitor |
|
|
16 |
Float Switch(optional) |
|
|
17 |
Cable Protector |
Rubber |
