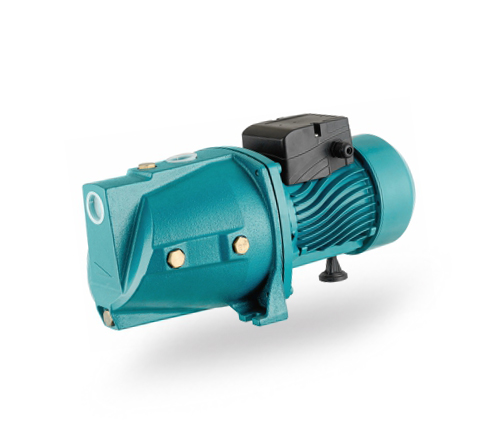

Introducing the JSW Series C&U Bearing AISI304 Shaft Self-priming JET Pump, designed for the efficient and reliable transfer of clean water. This pump is engineered to meet the demands of various applications where clean water circulation and transfer are essential.
Cast iron pump body and support under special antirust treatment
Rust-free copper inserts prevent impeller's block when starting after the pump is unused for a long time
Brass impeller
AISI 304 shaft
Max.liquid temperature : +40°C
Max.suction : +8m
|

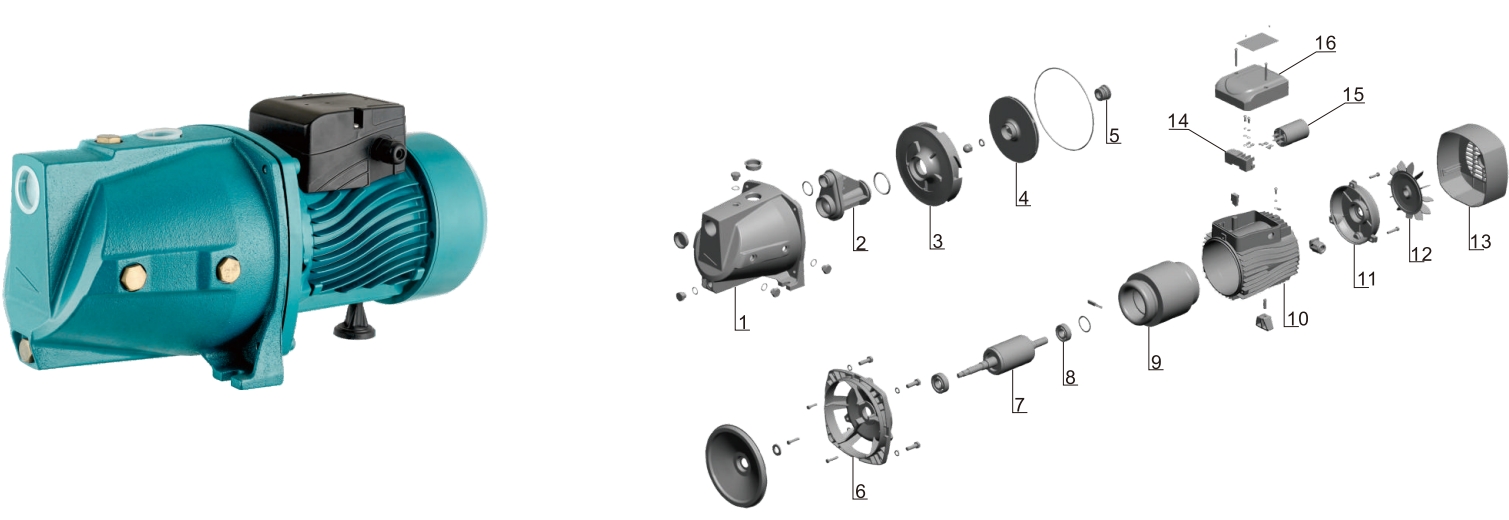

Materials Table |
||
|
NO. |
Part |
Material |
|
1 |
Pump Body |
HT200 |
|
2 |
Venturi Tube |
PPO |
|
3 |
Diffuser |
PPO |
|
4 |
Impeller |
Brass |
|
5 |
Mechanical Seal |
Carbon/Ceramic |
|
6 |
Support |
HT200 |
|
7 |
Shaft And Rotor |
|
|
8 |
Ball Bearing |
|
|
9 |
Stator |
|
|
10 |
Motor Case |
Aluminum |
|
11 |
Motor Cover |
Cast iron |
|
12 |
Fan |
PP |
|
13 |
Fan Cover |
|
|
14 |
Terminal Board |
PC |
|
15 |
Capacitor |
|
|
16 |
Terminal Cover |
|
|
|
||||||
|
Model |
Power |
Inlet x Outlet |
Max. Flow |
Max. Head |
Max. Suction |
|
|
kW |
HP |
(L/min) |
(m) |
(m) |
||
|
JSW-6M |
0.45 |
0.60 |
1"x1" |
50 |
45 |
8 |
|
JSW-8M |
0.75 |
1.0 |
1"x1" |
55 |
50 |
8 |
|
JSW-10M |
1.10 |
1.5 |
1"x1" |
60 |
60 |
8 |
