8SP95 Series Oil Filled Motor SS Deep Well Borehole Pump for Civil Applications

Minimum well diameter : 8"

Rated capacity : 95 m³/h
Oil Filled Motor

AISI 304/316 SS

Deep Well Borehole Pump

for Civil Applications

PREV：4SDM20 Large Flow High Efficiency Submersible Deep Well Water Pump
NEXT：9SP Series Clean Water Mass Flow Stainless Steel Submersible Deep Well Pump

Description
Components
Curves
Performance Data
Contact Us

Components and Material :

Components	Material
Delivery casing	①AISI 304 SS ②AISI 316 SS
Suction lantern	①AISI 304 SS ②AISI 316 SS
Diffuser	①AISI 304 SS ②AISI 316 SS
Shaft coupling	①AISI 304 SS ②AISI 316 SS
Impeller	①AISI 304 SS ②AISI 316 SS
Shaft	①AISI 304 SS ②AISI 316 SS
Wear ring	Rubber
Motor external casing	AISI 304 SS
Oil chamber	Cast-iron ASTM NO.30
Bottom support	Cast-iron ASTM NO.30
Seal	NBR Graphite-SIC/TC
Shaft	AISI 304 SS-ASTM 5140

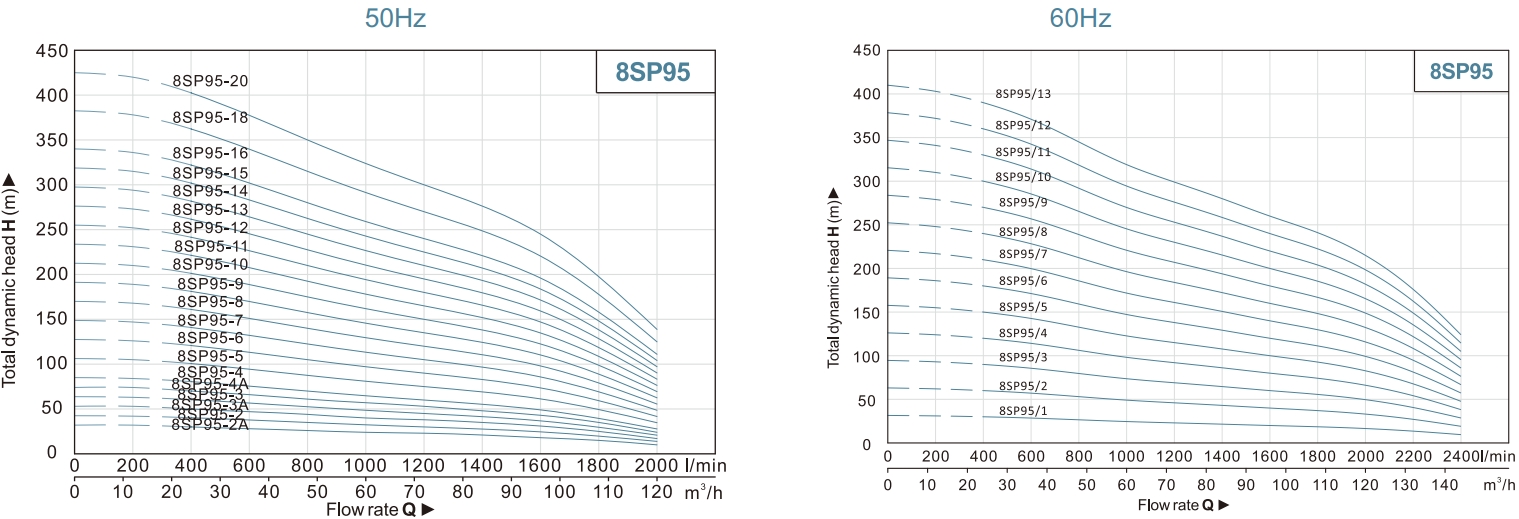

Performance Curves :

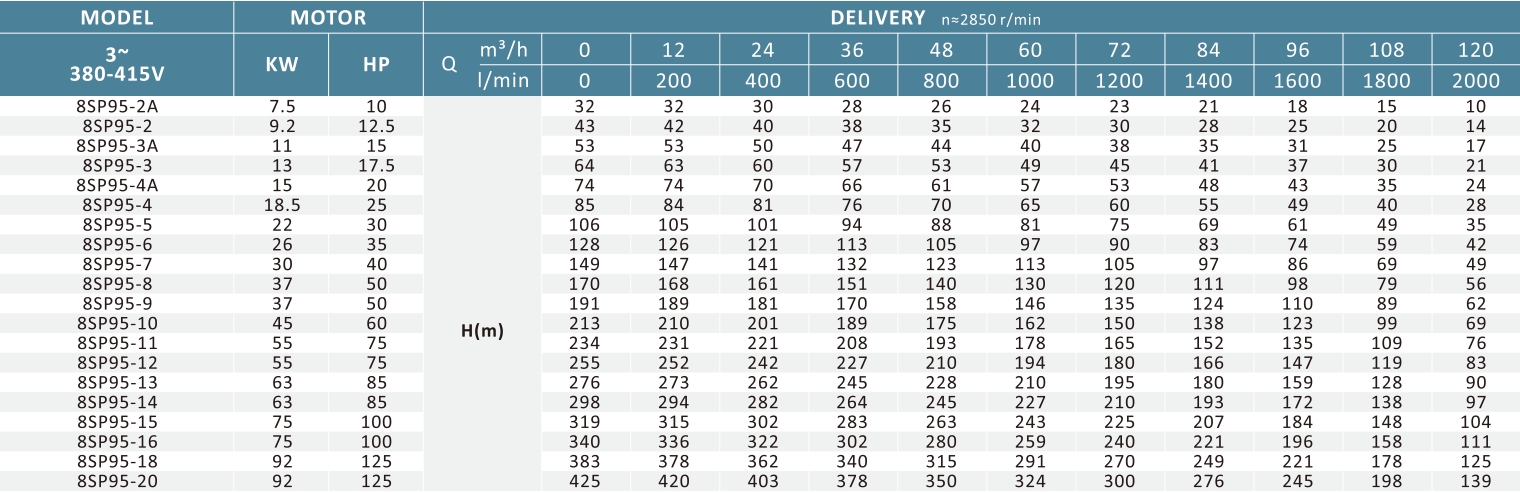

Technical Data (50Hz) :

Technical Data (60Hz) :
