The 9SP Series Clean Water Mass Flow Stainless Steel Submersible Deep Well Pump is designed for high-performance and reliability in deep well applications. Engineered with premium stainless steel, this pump ensures durability and resistance to corrosion, making it ideal for clean water transfer in both residential and commercial settings.
Applications :
-For water supply from wells or reservoirs
-For domestic use,for civil and industrial applications
-For garden use and irrigation
Maximum fluid temperature up to +50℃
Maximum sand content : 0.25%
Minimum well diameter : 9"
Rewindable motor
Equip with start control box or digital auto-control box
NEMA dimension standards

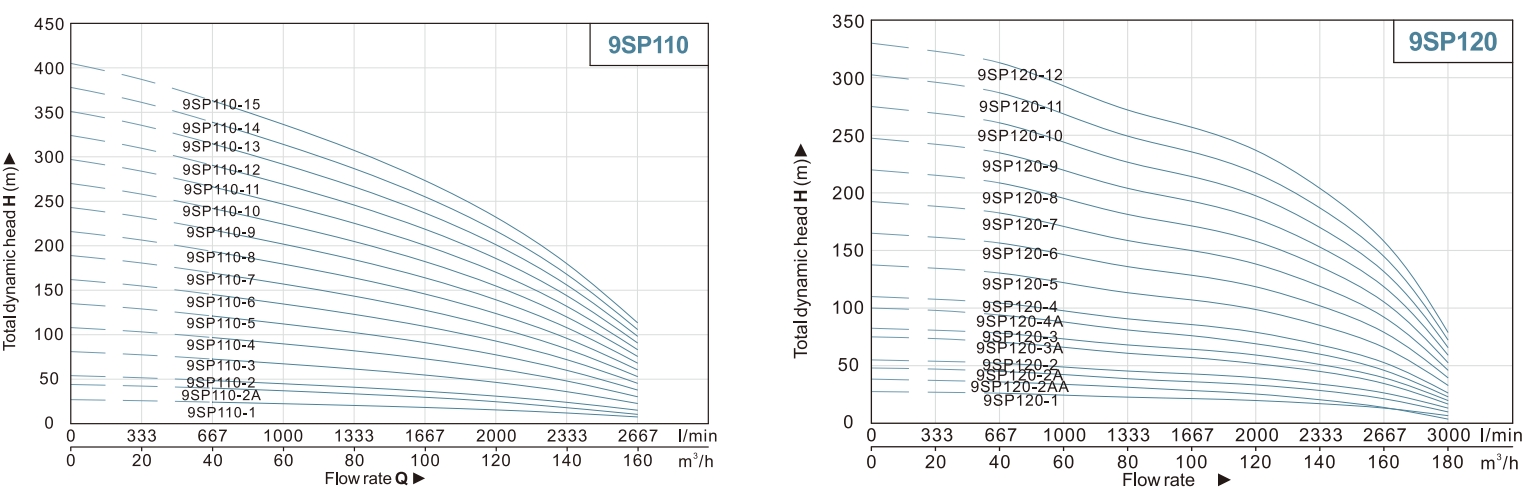

Curve tolerance according to ISO 9906
Options on request :
Special mechanical seal
(according to our general sales conditions)
CE Cerificate :
Product Line :
|
Components |
Material |
|
Delivery casing |
①AISI 304 SS ②AISI 316 SS |
|
Suction lantern |
①AISI 304 SS ②AISI 316 SS |
|
Diffuser |
①AISI 304 SS ②AISI 316 SS |
|
Shaft coupling |
①AISI 304 SS ②AISI 316 SS |
|
Impeller |
①AISI 304 SS ②AISI 316 SS |
|
Shaft |
①AISI 304 SS ②AISI 316 SS |
|
Wear ring |
Rubber |
|
Motor external casing |
AISI 304 SS |
|
Oil chamber |
Cast-iron ASTM NO.30 |
|
Bottom support |
Cast-iron ASTM NO.30 |
|
Seal |
NBR Graphite-SIC/TC |
|
Shaft |
AISI 304 SS-ASTM 5140 |
