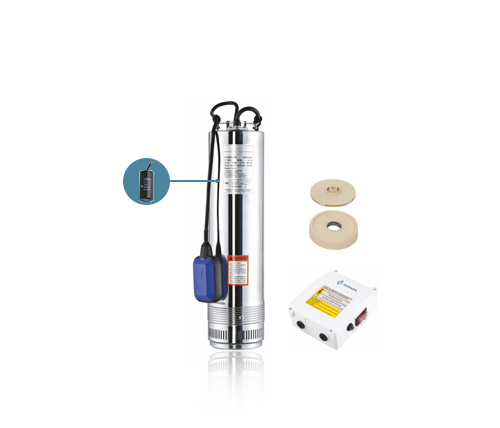

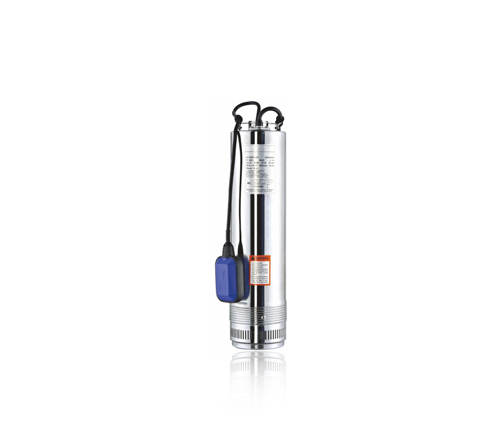

Designed to meet the demands of cross-border e-commerce platforms, SC Floating Switch Good Aftermarket Vortex Borehole Submersible Pump with Plastic Impeller is set to revolutionize the industry. With its exceptional features and unrivaled quality, it is guaranteed to stand out among its competitors.With its advanced features, reliable performance, and excellent customer service, it is the ideal choice for anyone in need of a high-quality water pump.
1、Its submersible design allows it to be fully immersed in water, ensuring efficient and reliable operation. Whether you need to extract water from a borehole or a deep well, this pump is the perfect solution.
2、One of the key features of this pump is the SC Floating Switch, which ensures optimal functionality. This innovative switch allows for automatic operation, activating the pump when the water level reaches a certain point and shutting it off when the desired level is reached.
3、This pump is equipped with a high-quality plastic impeller, which enhances its performance and durability.
4、In addition to its exceptional features, this pump also boasts a good aftermarket service. We understand the importance of customer satisfaction, which is why we offer comprehensive support and assistance to ensure that your experience with our product is nothing short of exceptional.
Operating Conditions:
Maximum fluid temperature up to +40℃
Maximum sand content : 0.15%
Minimum well diameter : 130mm
Rewindable motor
Single-phase:220 - 240V/50Hz
Three-phase: 380 - 415V/50Hz
Equipped with start control box or digital auto-control box
It's available to equip with floating switch
Curve tolerance according to ISO 9906
Special mechanical seal
Other voltages or frequency 60Hz
(according to our general sales conditions)
CE Certificate :
Product Line :
|
Components |
Material |
|
Pump external casing |
AISI 304 SS |
|
Delivery casing |
AISI 304 SS |
|
Suction lantern |
AISI 304 SS |
|
Diffuser |
Plastic.PPO |
|
Impeller |
Plastic.PPO |
|
Motor external casing |
AISI 304 SS |
|
Top chock |
Cast-iron ASTM NO.30 / AISI420 SS |
|
Bottom support |
AISI 304 SS |
|
Mechanical seal |
Graphite-Ceramic |
|
Shaft |
AISI 304 SS-ASTM 5140 |
|
Seal lubricant oil |
Oil for food machinery and pharmaceutic use |
