Designed with precision and built to last, SSC 304SS Impeller Automatic Harmless Water Outlet Vortex Borehole Submersible Pump for Household Use is the epitome of quality and performance. Whether you require a submersible deep well pump for residential or commercial use, this product is sure to exceed your expectations.
1、Crafted with the utmost care, the Submersible Deep Well Pump boasts a robust construction that ensures durability and longevity.
2、Its 304SS impeller guarantees efficient water flow, while the automatic harmless water outlet feature ensures a safe and reliable operation.
3、With its vortex design, this submersible deep well pump is capable of handling various water conditions, ensuring a smooth and uninterrupted water supply.
4、Its powerful motor delivers exceptional performance, allowing for a high flow rate and efficient water delivery.
5、 Its easy installation process ensures a hassle-free setup, saving you time and effort.
6、Additionally, this pump operates quietly, minimizing any disturbances in your surroundings.
Maximum fluid temperature up to +35'C
Maximum sand content : 0.15%
Minimum well diameter : 130mm
Rewindable motor
Single-phase:220 - 240V/50Hz
Three-phase: 380 - 415V/50Hz
Equip with start control box or digital auto-control box
It's available to equip with floating switch

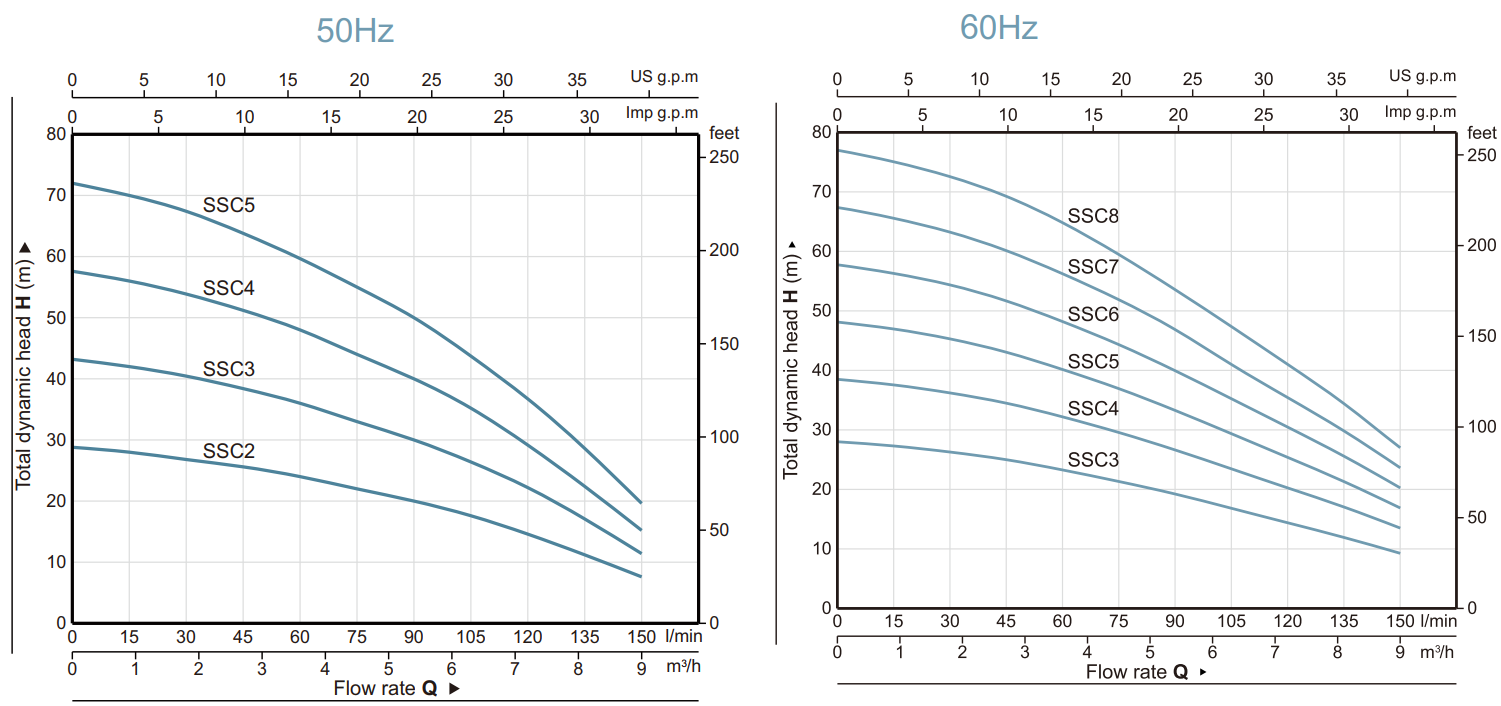

Curve tolerance according to Iso 9906
Special mechanical seal
Other voltages or frequency 60Hz
(according to our general sales conditions)
CE Certificate :
Product Line :
|
Components |
Material |
|
Pump external casing |
AISI 304 SS |
|
Delivery casing |
AISI 304 SS |
|
Suction lantern |
AISI 304 SS |
|
Diffuser |
AISI 304 SS |
|
Impeller |
AISI 304 SS |
|
Motor external casing |
AISI 304 SS |
|
Oil chamber |
① Cast-iron ASTM NO.30 ② AISI 420 SS |
|
Bottom support |
AISI 304 SS |
|
Mechanical seal |
Graphite-Ceramic |
|
Shaft |
AISI 304 SS-ASTM 5140 |
|
Seal lubricant oil |
Oil for food machinery and pharmaceutic use |
