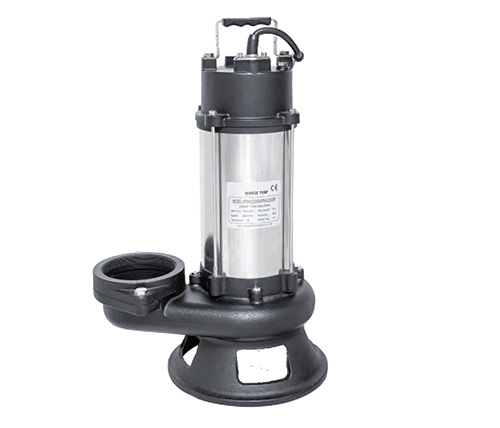

The KPW Series 220V 0.18-3KW Protection Class IPX8 Sewage Pump for Drainage Station is designed to efficiently handle wastewater drainage in a variety of settings.
Ideal for use in factories, construction sites, and commercial facilities, this sewage pump ensures reliable and hassle-free drainage of wastewater. It is also an excellent choice for drainage systems in municipal sewage treatment plants, where its powerful performance guarantees effective wastewater management.
Residential quarters can benefit from this pump as well, as it is specifically designed for drainage stations in such areas. Its robust construction and high-quality materials make it suitable for demanding municipal projects, where durability and efficiency are of utmost importance.
Moreover, this sewage pump is also suitable for use in methane pools, providing an efficient solution for managing wastewater in such environments.
With its IPX8 protection class, this sewage pump offers superior protection against water ingress, ensuring safe and reliable operation even in challenging conditions.
Choose the KPW Series 220V 0.18-3KW Protection Class IPX8 Sewage Pump for Drainage Station and experience the power, reliability, and efficiency it brings to your wastewater management needs.
Maximum immersion depth : 5 meters
Maximum liquid temperature : 40 degrees Celsius
Liquid pH value : 5-9
Liquid kinematic viscosity : 7×10-6 to 23×10-6 square meters per second
Maximum liquid density : 1.2×10³ kilograms per cubic meter
Copper winding for enhanced durability
Equipped with a built-in thermal protector for added safety
Stainless steel welded shaft for increased strength and longevity Insulation class: B, ensuring reliable performance
Protection class: IPX8, providing excellent protection against water ingress
|

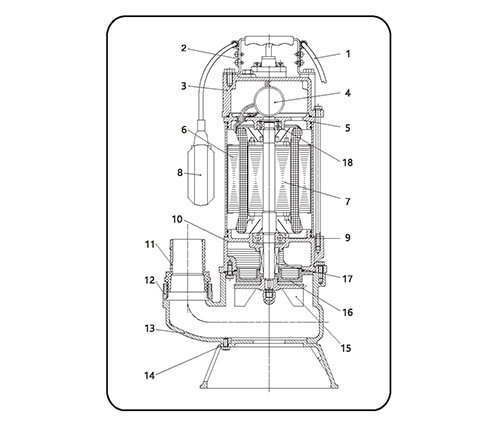

NO. |
NAME |
MATERIAL/SPEC. |
|
1 |
Cable components |
|
|
2 |
Handle |
AISI201 |
|
3 |
Capacitor Cover |
HT200 |
|
4 |
Capacitor |
|
|
5 |
Upper cover |
HT200 |
|
6 |
Motor |
AISI201 (Motor casing) |
|
7 |
Rotor |
AISI304 |
|
8 |
Float Switch(optional) |
|
|
9 |
Bearing(DGBB) |
|
|
10 |
Connecting Base |
|
|
11 |
Out-let connector |
HT200 |
|
12 |
Flange connector |
ABS |
|
13 |
Pump Body |
HT200 |
|
14 |
Base plate |
HT200 |
|
15 |
Impeller |
HT200 |
|
16 |
Cylinder Cover |
HT200 |
|
17 |
Double Mechanical Seal |
HT200 |
|
18 |
Bearing(DGBB) |
Ceramic/Graphite |
