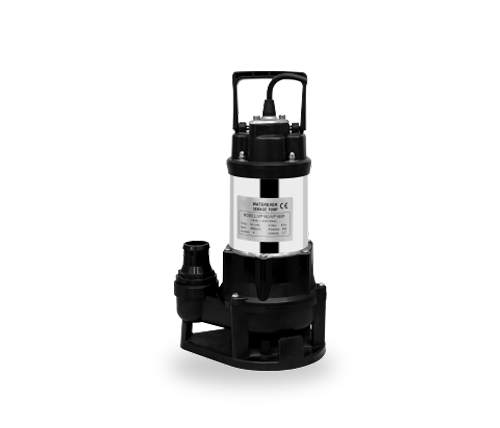

The VP Series 220V Copper Winding Sewage Pump is the ultimate solution for efficient wastewater drainage. Designed for use in a variety of settings, including factories, construction sites, and commercial facilities, this pump is a reliable choice for handling wastewater with ease.
With its robust construction and high-quality copper winding, this sewage pump is built to last. The copper winding not only ensures durability but also enhances the pump's efficiency, enabling it to effectively handle even the toughest wastewater challenges.
Operating at a powerful 220V voltage, this pump delivers reliable and consistent performance, making it suitable for demanding drainage tasks. Whether it's draining wastewater from multi-storey buildings or underground car parks, this pump is up to the challenge, ensuring a smooth and efficient drainage system.
With the VP Series 220V Copper Winding Sewage Pump, you can count on a professional-grade solution that combines durability, efficiency, and reliability. Invest in this pump for your wastewater drainage needs and experience the difference it makes in maintaining a clean and efficient environment.
Max:immersion depth : 5m
Max:liquid temperature : 40°C
Liquid PH value : 5-9
Liquid kinematic ciscosity : 7×10-6~23×10-6m²/s
Max.liquid density : 1.2×10³kg/m³
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class : B
Protection class : IPX8
|

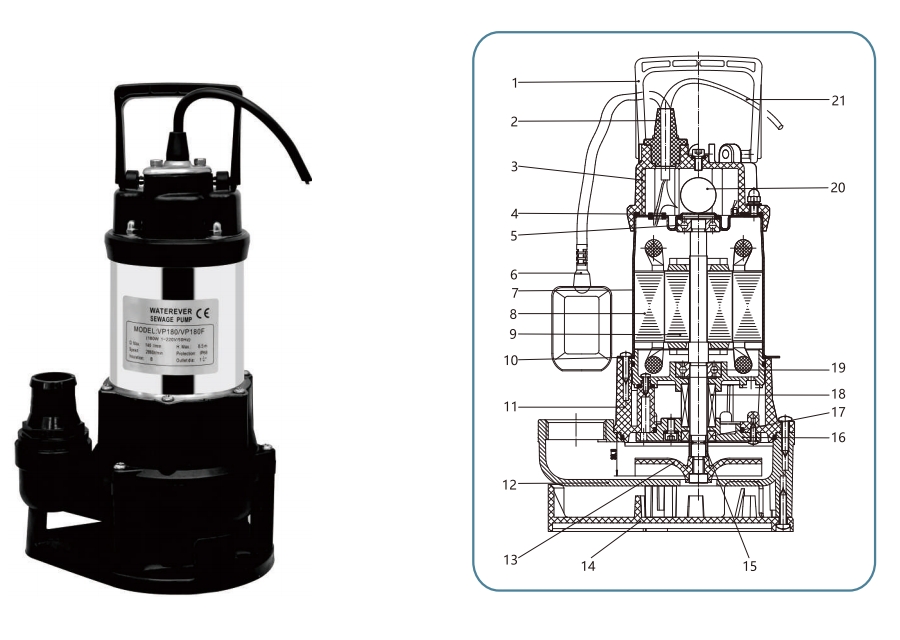

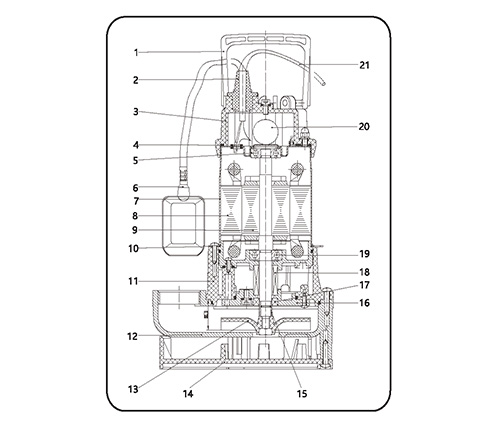

NO. |
NAME |
MATERIAL/SPEC. |
|
1 |
Handle |
PP |
|
2 |
Cable Protector |
Rubber |
|
3 |
Capacitor Cover |
PA66 |
|
4 |
Washer |
NBR |
|
5 |
Bearing |
|
|
6 |
Float Switch(optional) |
|
|
7 |
Motor Cover |
AISI201 (Motor casing) |
|
8 |
Rotor |
45#Carbon steel&2Cr13 Stainless |
|
9 |
Washer |
|
|
10 |
Oil cylinder |
PA66 |
|
11 |
Pump body |
PA66 |
|
12 |
Impeller |
PA66 |
|
13 |
Base Plate |
PP |
|
14 |
Shaft Sleeve |
Stainless steel spray porcelain |
|
15 |
Oil cylinder cover |
PA66 |
|
16 |
Oil seal |
|
|
17 |
Mechanical seal |
Ceramic/Graphite |
|
18 |
Bearing |
|
|
19 |
Capacitor |
|
|
20 |
Cable |
|
