10SP Series 10 Inch Stainless Steel Submersible Borehole Pump for Industrial Applications

Minimum well diameter : 10"

Rated capacity : 125/160 m³/h
Stainless Steel Material

Submersible Borehole Pump

for Industrial Applications

PREV：9SP Series Clean Water Mass Flow Stainless Steel Submersible Deep Well Pump
NEXT：2SDM0.7 2" Borehole Single-phase Safe Submersible Pump for Domestic Use

Description
Components
Curves
Performance Data
Contact Us

Components and Material :

Components	Material
Delivery casing	①AISI 304 SS ②AISI 316 SS
Suction lantern	①AISI 304 SS ②AISI 316 SS
Diffuser	①AISI 304 SS ②AISI 316 SS
Shaft coupling	①AISI 304 SS ②AISI 316 SS
Impeller	①AISI 304 SS ②AISI 316 SS
Shaft	①AISI 304 SS ②AISI 316 SS
Wear ring	Rubber
Motor external casing	AISI 304 SS
Oil chamber	Cast-iron ASTM NO.30
Bottom support	Cast-iron ASTM NO.30
Seal	NBR Graphite-SIC/TC
Shaft	AISI 304 SS-ASTM 5140

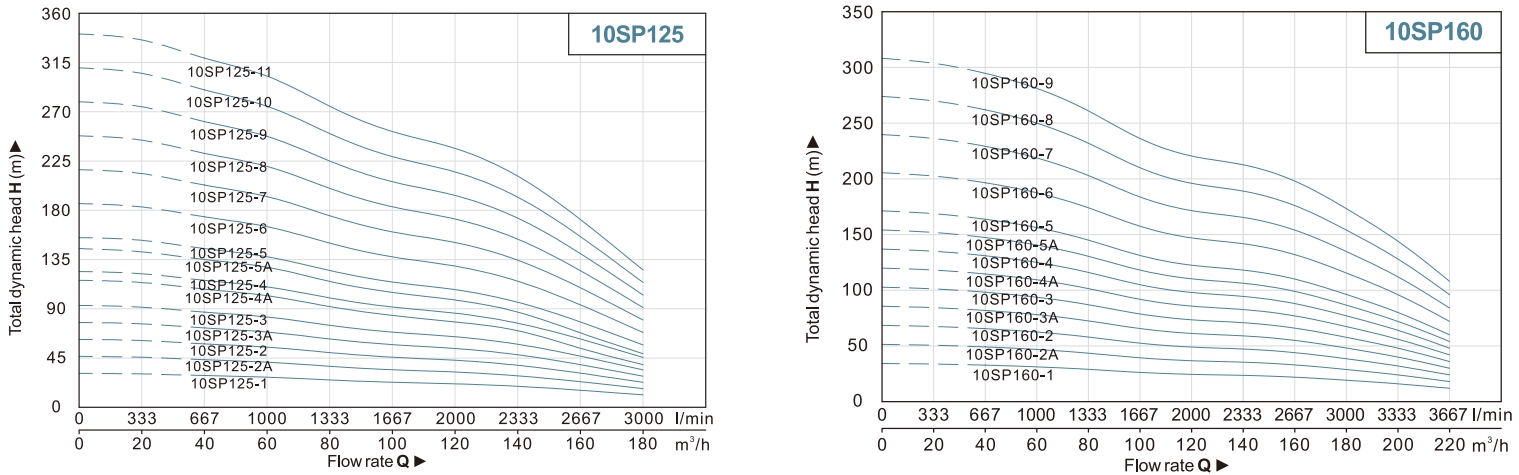

Performance Curves :

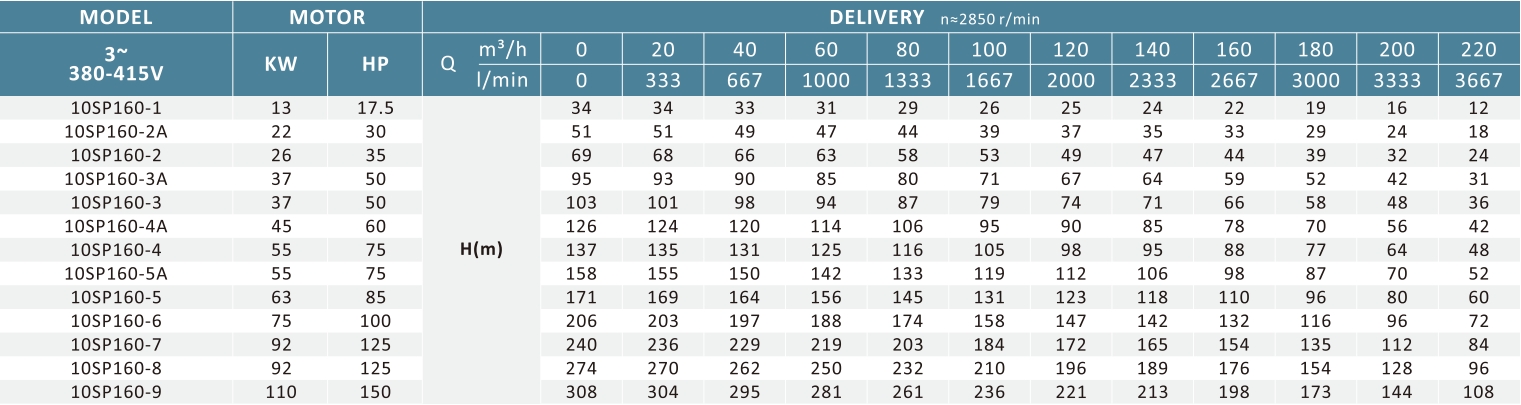

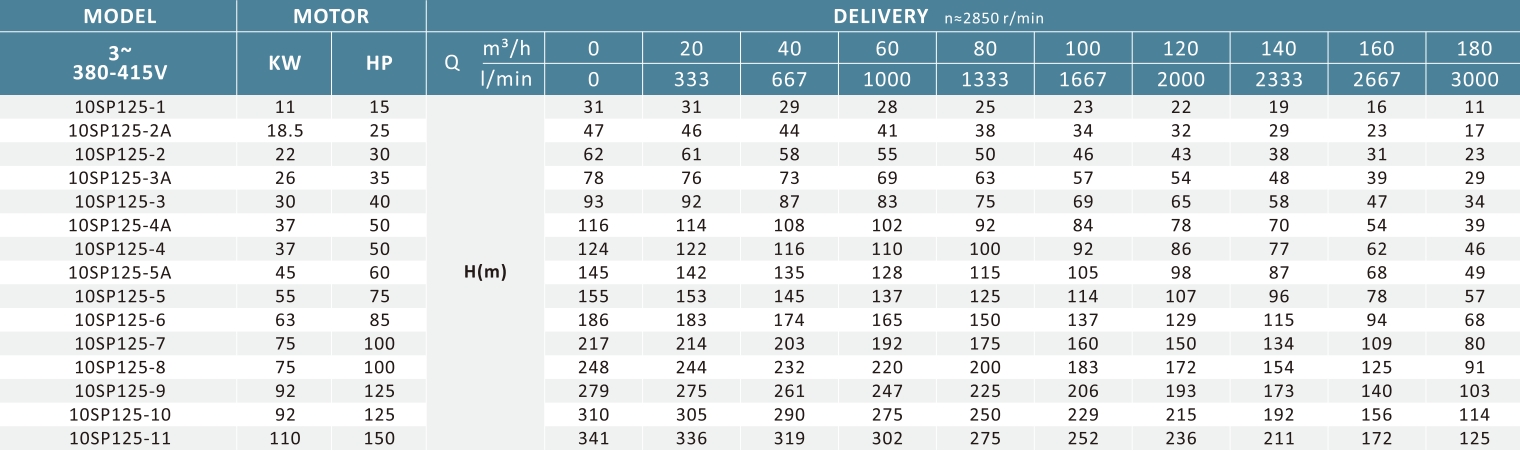

Technical Data (50Hz) :
