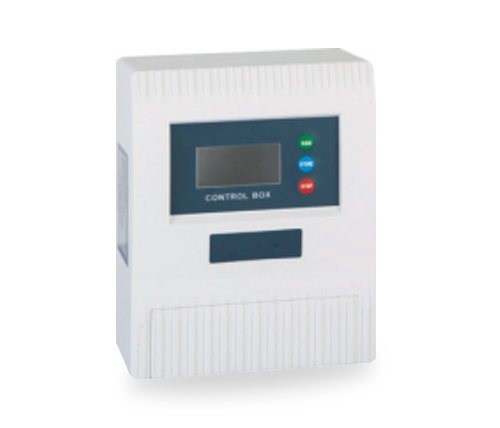

LAT-1 Three-phase 50/60Hz Motor Stalled Protection LCD Displaying Automatic Control Box

Operating Conditions :
Rated input voltage : AC380V, Three phase 50Hz/ 60Hz
Rated output power : 0.75-7 .5kW
Protection class : IP22
Working temperature : -25~+55^oC
Working humidity : 20%~90%RH, no condensing

Function Description :

Over load protection
Motor stalled protection
Dry run protection with sensor free
Under voltage protection
Over voltage protection
Open phase protection
Transient surge protection
Memory function when power off & recovery
LCD screen displaying pump running status
Push button calibration

Key Features :

1、The motor stalled protection feature is designed to prevent damage to the motor in the event of a stall or overload. It detects abnormal operating conditions and automatically shuts off power to the motor, protecting it from overheating or other potential damage.
2、The LCD display provides a clear and easy-to-read interface for monitoring the motor's operating status and settings. It can display important information such as voltage, current, frequency, and motor speed, allowing for real-time monitoring and troubleshooting.
3、The automatic control capabilities of the control box enable it to automatically regulate the motor's operation based on pre-set parameters. This ensures consistent and efficient motor performance without the need for manual intervention.
4、The control box is suitable for three-phase motors operating at either 50Hz or 60Hz, making it versatile and compatible with a wide range of motor applications.

Dimension :

170 x 155 x 85 mm
