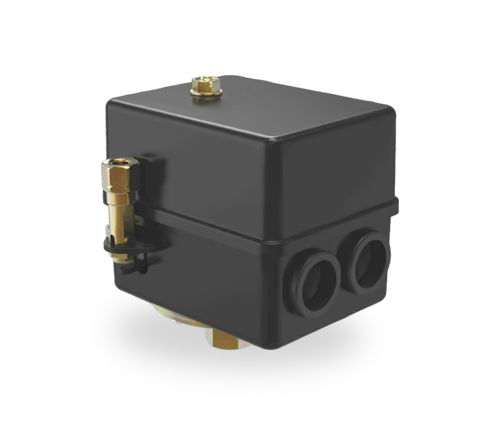

Wholesale ERS21 Series 110V to 240V 20A Custom Design Pressure Control for Air Compressors Supplier, OEM/ODM Company

Description :

The ERS21 Series 110V-240V 20A Custom Design Automatic Pressure Control is specifically designed for air compressor applications. It provides automatic pressure control and is customizable to meet specific requirements.

This pressure control switch is designed to operate with power supplies in the voltage range of 110V-240V. It can handle a wide range of power inputs, making it suitable for various air compressor setups.

The ERS21 Series is capable of handling a maximum current of 20A, ensuring reliable operation and power handling for air compressor systems

One of the key features of the ERS21 Series is its automatic pressure control functionality. It maintains a consistent and desired pressure level within the air compressor system, ensuring efficient operation and preventing any damage due to excessive pressure.

The ERS21 Series is also customizable to meet specific requirements. It can be designed and configured to suit specific pressure ranges, control settings, and other parameters, making it a versatile solution for different air compressor applications.

The ERS21 Series 110V-240V 20A Custom Design Automatic Pressure Control is an ideal choice for air compressor applications that require automatic pressure control and customization options. Its compatibility with different power supplies, high current handling capacity, and customizable design make it a reliable and tailored solution for air compressor systems.

Key Features :

1. Pressure switch designed for air compressor application.

2. The switch automatically initiates and ceases compressor operation based on preset pressure settings.

3. Hydraulic connections available in female sizes of 1/4" or 3/8" and male size of 1/4".

4. Equipped with air-relief valve featuring a delayed closing system.

Options :

- Hydraulics connection according to customer's needs
- Pressure setting according to customer's needs.
- Air-relief value of 6mm or 1/4" diameter pipe

Technical Data :

-Pressure Range : 15-250psi

-Pressure Setting : 30-50psi / 50-80psi / 100-125psi / 185-230psi / 190-250psi
-Rated Current : 20A

-Rated Voltage : 110V-240V

-Frequency : 50/60Hz
-Max Ambient Temperature : 40°C

-Protection Degree : IP20
-Max Liquid Temperature : 60℃
