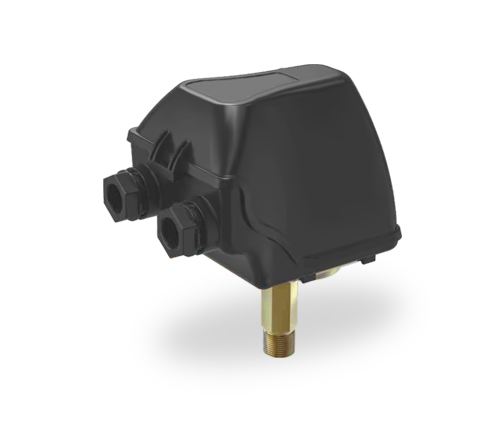

Wholesale ERS22 Series 110V to 240V 12A 15 to 80psi Standard Mechanical Pressure Control for Air Compressors Supplier, OEM/ODM Company

Description :

The ERS22 Series 110V-240V 12A 15-80psi Standard Mechanical Pressure Control is specifically designed for air compressor applications. It provides standard mechanical pressure control and operates within a pressure range of 15-80psi.

This pressure control switch is designed to operate with power supplies in the voltage range of 110V-240V. It can handle a maximum current of 12A, ensuring reliable operation and power handling for air compressor systems.

The ERS22 Series offers standard mechanical pressure control, which means it utilizes mechanical components to regulate and maintain the desired pressure level within the air compressor system. It does not feature automatic control functionality but provides reliable and consistent pressure control within the specified range.

The pressure range of the ERS22 Series is 15-80psi, making it suitable for various air compressor applications that require pressure within this range.

The ERS22 Series 110V-240V 12A 15-80psi Standard Mechanical Pressure Control is an ideal choice for air compressor applications that require standard mechanical pressure control within a specific pressure range. Its compatibility with different power supplies, moderate current handling capacity, and reliable mechanical pressure control make it a practical and cost-effective solution for air compressor systems.

Key Features :

1. Pressure switch specifically designed for air compressor systems.

2. This switch initiates and terminates automatic compressor operation, based on preset pressure configurations.

3. Hydraulic connections available in both male and female sizes, measuring 1/4 inch.

Options :

- Hydraulics connection according to customer's needs
- Pressure setting according to customer's needs.

Technical Data :

-Pressure Range : 15-80psi

-Pressure Setting : 15-35psi / 20-40psi / 30-50psi / 40-60psi / 50-80psi
-Rated Current : 12A

-Rated Voltage : 110V-240V

-Frequency : 50/60Hz
-Max Ambient Temperature : 40°C

-Protection Degree : IP54
-Max Liquid Temperature : 60℃
