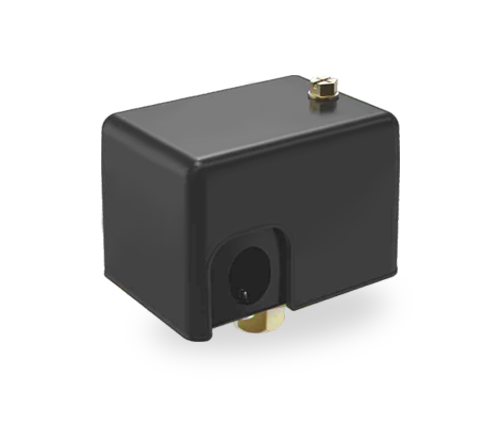

Wholesale ERS25 Series 110V to 240V 12A 10 to 80psi Rotative Hydraulics Connection Mechanical Pressure Control for Air Compressors Supplier, OEM/ODM Company

Description :

The ERS25 Series 110V-240V 12A 10-80psi Rotative Hydraulics Connection Mechanical Pressure Control is specifically designed for air compressor applications. It provides mechanical pressure control and features a rotative hydraulics connection.

This pressure control switch is designed to operate with power supplies in the voltage range of 110V-240V. It can handle a maximum current of 12A, ensuring reliable operation and power handling for air compressor systems.

The ERS25 Series offers mechanical pressure control with a rotative hydraulics connection. This means it utilizes mechanical components and a hydraulics connection to regulate and maintain the desired pressure level within the air compressor system. The rotative hydraulics connection allows for easy adjustment and control of the pressure settings.

The pressure range of the ERS25 Series is 10-80psi, making it suitable for air compressor applications that require pressure within this range.

The ERS25 Series 110V-240V 12A 10-80psi Rotative Hydraulics Connection Mechanical Pressure Control is an ideal choice for air compressor applications that require mechanical pressure control with a rotative hydraulics connection. Its compatibility with different power supplies, moderate current handling capacity, and adjustable pressure settings make it a versatile and reliable solution for air compressor systems.

Key Features :

1. Pressure switch specially designed for air compressor systems.

2. The switch triggers and stops compressor operation automatically, according to pre-set pressure settings.

3. Hydraulic connections are available in 1/4" male or female, as well as 3/8" female rotary connections.

Options :

- Hydraulics connection according to customer's needs
- Pressure setting according to customer's needs.

Technical Data :

-Pressure Range : 10-80psi

-Pressure Setting : 10-25psi / 20-40psi / 30-50psi / 40-60psi / 50-80psi
-Rated Current : 12A

-Rated Voltage : 110V-240V

-Frequency : 50/60Hz
-Max Ambient Temperature : 40°C

-Protection Degree : IP20
-Max Liquid Temperature : 60℃
