EPC-10 Series Manual and Time Modes NBR Rubber Membrane Pressure Switches for Usage with Water Pump System

Starting pressure : 0.5bar - 6.7bar

Rated Voltage : 110V-240V

Frequency : 50/60Hz

Max. Ambient Temperature : 60℃

Protection degree : IP65

2 in 1 Modes
NBR Rubber Membrane
Pressure Switches
for Usage with Water System

PREV：EPC-12 Series 9.8 Bar Working Pressure IP65 Protection Rating New Design Digital Screen Pressure Switch for Water Pumps

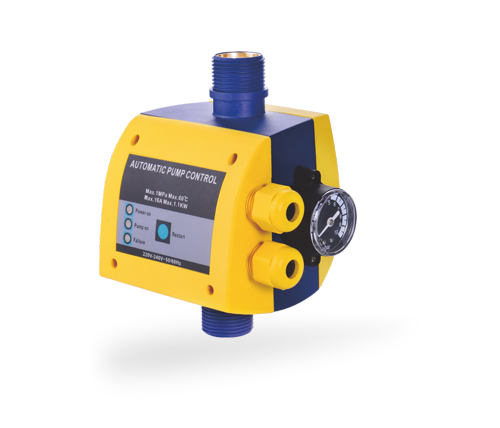

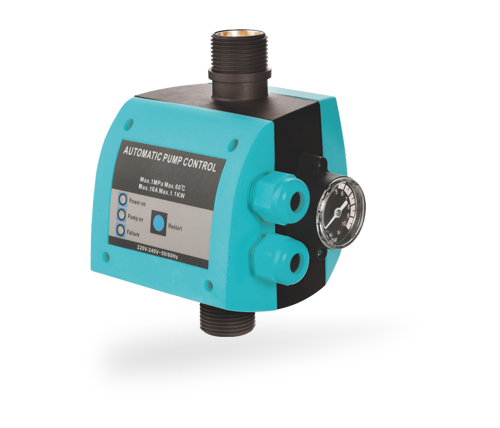

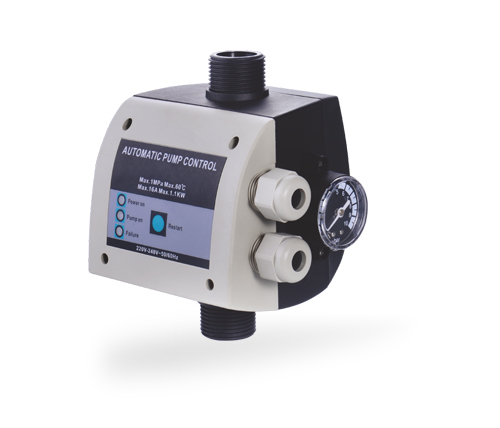

NEXT：EPC-9 Series 60℃ Working Temperature Silver Plated Contact Rain Proof Design Pressure Switch for Water Pumps

Description
Components
Curves
Performance Data
Contact Us

Description :
The EPC-10 Series Manual and Time Modes NBR Rubber Membrane Pressure Switches are specifically designed for use with water pump systems. These pressure switches are equipped with a NBR (Nitrile Butadiene Rubber) membrane, which provides excellent sealing properties and resistance to water and other fluids.
These pressure switches offer two modes of operation, allowing for flexibility in pressure control. The first mode is the normally open (NO) mode, where the switch is open when the pressure is below the set point and closes when the pressure reaches the set point. The second mode is the normally closed (NC) mode, where the switch is closed when the pressure is below the set point and opens when the pressure reaches the set point.
The NBR rubber membrane used in these pressure switches ensures a reliable and tight seal, preventing any leakage or loss of pressure. It is suitable for use with water systems where maintaining pressure is crucial.
These pressure switches are designed for easy installation and operation. They can be easily integrated into water systems and provide accurate pressure control.
The EPC-10 Series Manual and Time Modes NBR Rubber Membrane Pressure Switches for Usage with Water Pump Systems are an ideal choice for water systems that require reliable pressure control and sealing properties. They offer flexibility in operation modes and ensure a tight seal, making them suitable for a wide range of water system applications.

Key Features :
1、2 IN 1 Modes, used in different applications
- Manual Mode: Mainly used for non-tower water supply
- Time Mode: Mainly used for filling up the water tower
2、Pressure switches for usage with water in pipe systemAuto on & off by MCU (Multi-point Control Unit)
3、NBR rubber membrane with textile insert (food grade)
4、Hydraulic connection made of chromium-plated steel :
- Available connection : Rotary 1/4”F, 1/4”M, Fixed 1/4”& 3/8
-Standard protection degree IP 65
-Max working temperature 60°C
5、Warranty coverage for one year.

Liquid Crystal Display :

The EPC-10 water pump pressure switch , a brand new design and appearance for mechanical pressure switch with intelligent display LCD (Licuid Crystal Display) . Two modes can be switched ."Manual Mode"automatically starts and stops the electric water pump according to the setting pressures , also display real-time pressure. Time mode used for flling up the water tower , the time setting will be changed as 0.1H , 0.2H...0.9H , 1H , 2H ... 24H. Water shortage alarm .

Adjustment Range : 0.3 - 6.5 Bar
- Stating pressure setting : 0.5 - 6.7 Bar
- Stopping pressure setting : 0.8- 7.0 Bar

Technical Parameters :

Rated voltage	110V-240V
Power Frequency	50/60Hz
Starting Pressure Setting	0.5-6.7bar
Stopping Pressure Setting	0.8-7.0bar
Delay Startup Settings	0.1-1H,1-24H
Max Working Pressure	1.0Mpa
Screw Type	Female	Male
Screw Size	Fix Nut : 1/4” 3/8” Rotary : 1/4”	1/4"
Protection Rating	IP65
Max Working Temperature	60℃
