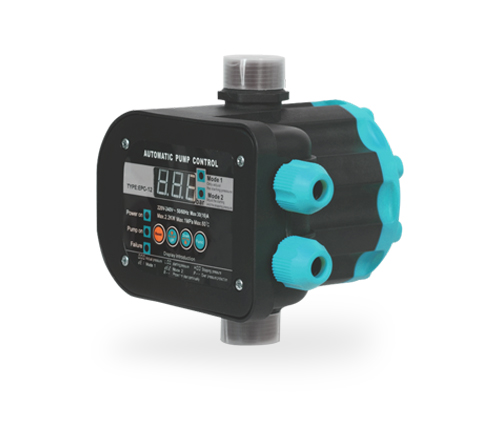

EPC-12 Series 9.8 Bar Working Pressure IP65 Protection Rating New Design Digital Screen Pressure Switch for Water Pumps

Max working pressure : 9.8bar

Max. Rated Current : 30A

Rated Voltage : 100V-120V or 220V-240V or 110V-240V

Frequency : 50/60Hz

Max. Ambient Temperature : 60℃

Protection degree : IP65

New Design
Digital Screen
Pressure Switch for Water Pumps

PREV：EPC-7 Series 30A 100V to 240V Dry-running Protection Automatic Pressure Switch Used in Water System
NEXT：EPC-10 Series Manual and Time Modes NBR Rubber Membrane Pressure Switches for Usage with Water Pump System

Description
Components
Curves
Performance Data
Contact Us

Description :

The EPC-12 Series 9.8 Bar Working Pressure IP65 Protection Rating New Design Digital Screen Pressure Switch is specifically designed for water pump applications. It provides accurate pressure control and features a new design with a digital screen for easy monitoring and adjustment.This pressure switch is capable of handling a maximum working pressure of 9.8 Bar, making it suitable for water systems that require high-pressure operation. It ensures precise control of the pressure within the system, preventing any damage or malfunction.The IP65 protection rating of this pressure switch ensures its resistance to dust and water ingress. It is designed to withstand harsh environmental conditions, making it suitable for both indoor and outdoor installations.The new design of this pressure switch includes a digital screen, which provides clear and easy-to-read pressure readings. It allows for quick and convenient monitoring of the pressure within the water system, as well as adjustment of the set points.The EPC-12 Series 9.8 Bar Working Pressure IP65 Protection Rating New Design Digital Screen Pressure Switch is an ideal choice for water pump applications that require accurate pressure control, durability, and easy monitoring. Its high working pressure capability, IP65 protection rating, and digital screen make it a reliable and user-friendly solution for water systems.

Key Features :
1、New Design
-Model 1:Working with normal model
-Model 2:can set starting pressure and closing pressure
2、with 30 mins timer control
3、with digtal screen,suitable for the young
4、 Warranty coverage for one year.

Optionals :

-Color: Can be customized to meet customer specifications.
-G1" plastic pipe fitting enables rapid connection to water pump.
-Power cord length can be tailored to meet customers' requirements.
-Starting pressure can be adjusted during installation , it can adjust bu customers.

Technical Parameters :

Rated voltage	220-240V	110-120V	110-240V
Power Frequency	50/60HZ	50/60HZ	50/60HZ
Max using current	30A	30A	30A
Max power	2.2KW	1.1KW	2.2KW
Max working pressure	9.8bar	9.8bar	9.8bar
Connection thread	G1”	G1”	G1”
Protection rating	IP65	IP65	IP65
Max working temperature	60℃	60℃	60℃
