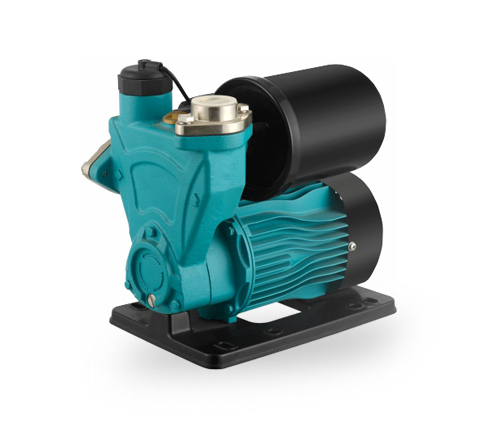

ETPS-AZ Series Dual Control Mass Flow No Rust Self-suction Pump with Tank

Description :

The ETPS-AZ Series Intelligent Mass Flow No Rust Self-suction Pump with Tank is a cutting-edge product that offers exceptional performance and reliability for all your water pumping needs. Whether it's for residential, commercial, or industrial applications, this pump is designed to deliver outstanding results.

Key Features :

Motor Excellence
All-copper wire for greater durability. Equipped with high-efficiency human bearings. Uses cold-rolled 600 steel sheets for efficient energy savings.
Single-phase motor with wide voltage design and a built-in overheat protection device.
Protection level: IP44. Insulation level: F.

Superior Pump Construction
Cast iron pump body and front cover with special anti-rust treatment.
Copper impeller and stainless steel insert. After long-term shutdown and restart, the impeller is free from jamming.
AISI 304 stainless steel welded shaft that never rusts in water-contact areas.
Maximum liquid temperature: +90°C.
Maximum suction lift: +9 m.


Applications :

• Suitable for transfering clean water or other liquids similar to water in physical andchemical properties.
• As a result ofcompactness,reliability they are easy to use and recommended forusing in domestic and civil applications such as distribution ofwater in consumptionwith small pressure sets, for the irrigation of gardens and allotments, for drawingwater from tanks and other situations where air or water maybe present in thewater to be pumped.
• The pump comes complete with a flap-check valve.The pump should be installedin an enciosed environment, or at least sheltered from inclement weather.
• Widely used in living water supply,water tower water supply,automatic irrigationsystem,well water lifting, various corollary equipments, etc

FAQ:

Q: What is the delivery time?
A:The sample can be sent to customer within 10-15 days.
The batch order can be shipped within 35 days after receiving deposit payment
Q:Where is your loading port?
A: Ningbo port, China
Q: Is it all right to make customer's own brand name?
 A: Can make OEM if order quantity reached 1000pcs totally
Q: What is your payment term?
A: 30% in advance, 70% balance the B/L or T/T
Q: What is the warranty of the product?
A: We offer 1 year product life guarantee and a generous 1 year warranty on all purchases that begin with the BL
Q: What information shall I provide you when I need your offer?
A: Normally, we need customer to supply the pump flow, total head, pump material (copper wire or aluminum wire? Stator length), voltage, frequency, etc, so we can quote exactly what customer need
Q: Can you accept customized products?
A: Yes we accept your specific order if you could provide us with your requirements.
Q: Will you supply any spare parts with the pumps?
A: Yes, we can supply for example: tank, flexible hose, pressure switch, pressure gauge, brass connector, cable, etc.
Q: Is there any leakage problem of this pump?
A: Some factory may have such problem, but we solved it very well, by using good material of pump casing, O-ring, and they fit each other perfect. We use 8 screw on the pump head while others may use only 6 screw to save cost. We test 100% and long time for the pump head part, to make sure there is no leakage problem.
Q: Do you supply sample?
A: We can supply sample, but customer have to pay for the sample fee
Q: What is the delivery time?
A:30-45 after we receiving your deposit.
Q:Where is your loading port?
A: Ningbo port, China
Q: Where did you export to?
A: We export to more than 50 countries, for example, Israel, South Africa, Germany, Poland, Spain, Vietnam, Malaysia, Russia, Thailand, Mexico, Brazil, Chile, etc.
Q: Can I get any discount if order EDWIN PUMP brand?
A: At the moment, customer can get lower offer if they purchase EDWIN PUMP brand but still get same good quality pumps as always.
Q: Can I order some pressure tank, flexible hose, 5-way connector, pressure gauge, pressure controller and assemble with the pump?
A: Yes, many customer purchase by this way, and we can make very good job to have this booster system to be assembled without any problem.
Q: Can the pump be made by customized voltage and frequency?
A: Yes, 220-240V, 110V, 50Hz, 60Hz, we can make according to customer's need
